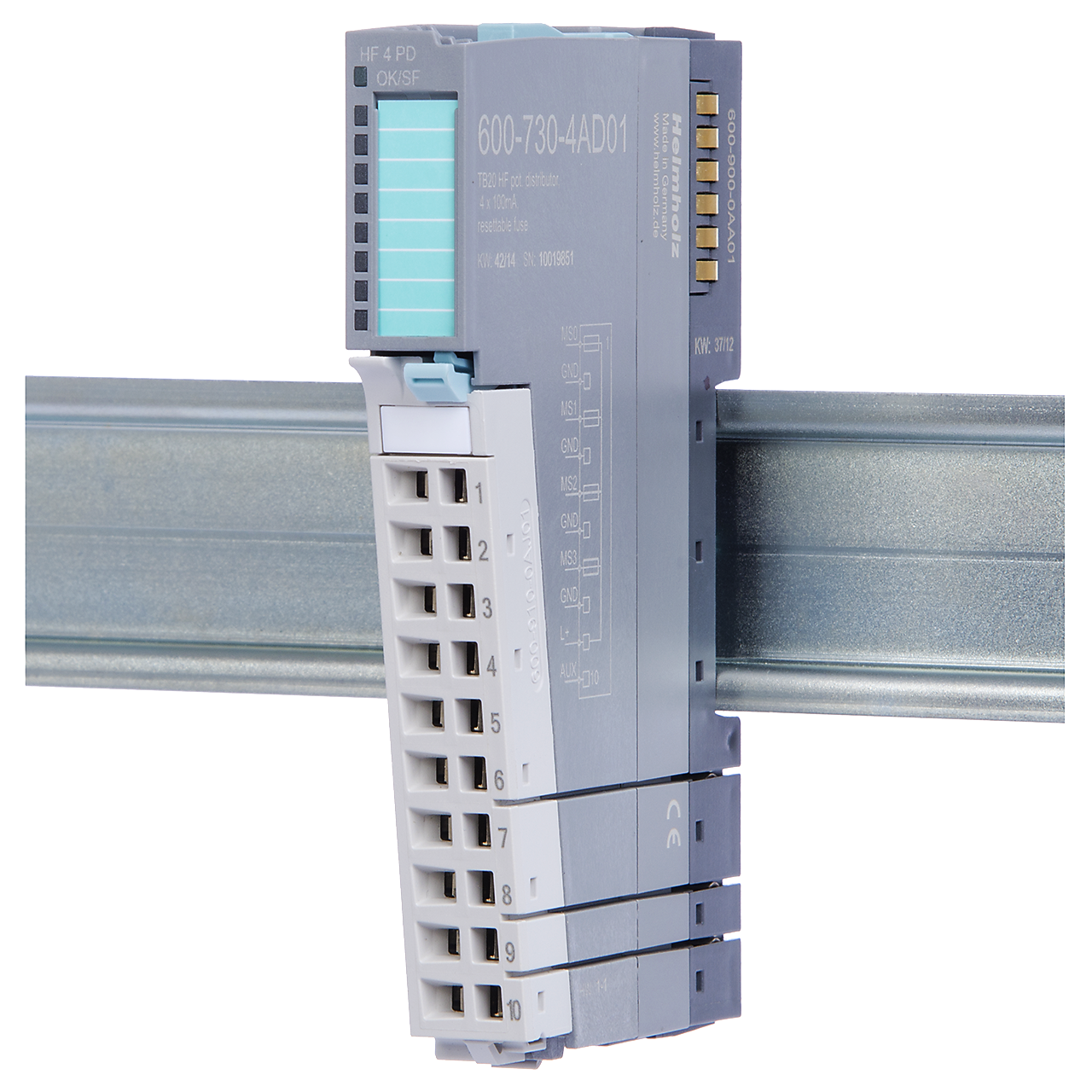

Potential distributor 4x DC 24 V, Highfeature
Potential distributors simplify the wiring work and expand the connection options.
€46.32
Potential distributor 4x DC 24 V, Highfeature
The 4x DC 24 V Highfeature potential distributor can be used to power up to four transducers or 3-wire sensors. Moreover, it features a monitoring functionality that not only monitors the 24 V load voltage, but that also monitors for overload and short-circuit conditions at the supply outputs.
In the event of a fault, the module will send a diagnostic signal to the PLC and change the color of the corresponding LEDs to red.
Status information in the process input image table makes it easier to monitor the power supply module.
Note: Individual modules cannot be combined with the IO systems of other manufacturers.
- 4 power supply outputs, electrically isolated from the backplane bus
- 24 V DC output voltage
- Approx. 100 mA output current per channel
- Self-resetting fuse
- A blue LED indicates the module's operating status
- Green/red LEDs indicate the outputs’ statuses
- 24 V load voltage monitoring and diagnosis
- Short circuit to GND monitoring and diagnosis for each channel
- Channel status information in input image table
Potential distributor 4x DC 24 V, Highfeature
General information
- Order number600-730-4AD01
- Article namePotential distributor 4 x DC 24 V Highfeature
- Scope of deliveryPotential distributor 4 x DC 24 V Highfeature
- Dimensions (DxWxH)110 x 14 x 73 mm
- WeightApprox. 75 g
- Number of outputs4
- Isolation from the backplane busYes
- Power dissipationMax. 0.1 W
- Hot-swap capableNo
Current draw
- ExternalMax. 10 mA + load
- InternalMax. 30 mA
Load
- Per contactApprox. 100 mA
- Short circuitSelf-resetting fuse
Ambient conditions
- Ambient temperature0 °C … +60 °C
- Transport and storage temperature-20 °C … +80 °C
- Relative air humidity95 % r H without condensation
- Protection ratingIP 20
- CertificationsCE, UL pending
CE
- Noise immunityDIN EN 61000-6-2 “EMC Immunity”
- Interference emissionDIN EN 61000-6-4 “EMC Emission”
- Vibration and shock resistanceDIN EN 60068-2-6:2008 „Vibration“, DIN EN 60068-2-27:2010 „Shock"
Potential distributor 4x DC 24 V, Highfeature
| Name | Version | Size |
| TB20, Manual Modules | 15 | 8 MB |
| Name | Version | Size |
| Flyer, TB20 IO-system for numerous applications | 08-2022 | 6 MB |
| Name | Version | Size |
| Potentialverteiler 4x DC 24 V, Highfeature, Kurzschlussfest, mit Diagnosen, STEP files | 3 MB |
