Remote Maintenance Router for PLC Controllers with Ethernet and Profibus Interface
REX 100
VPN remote maintenance
Digital inputs and outputs for key switches or signal lamps
WEB2go
(Access visualizations, HMI's and PC's with the smartphone)

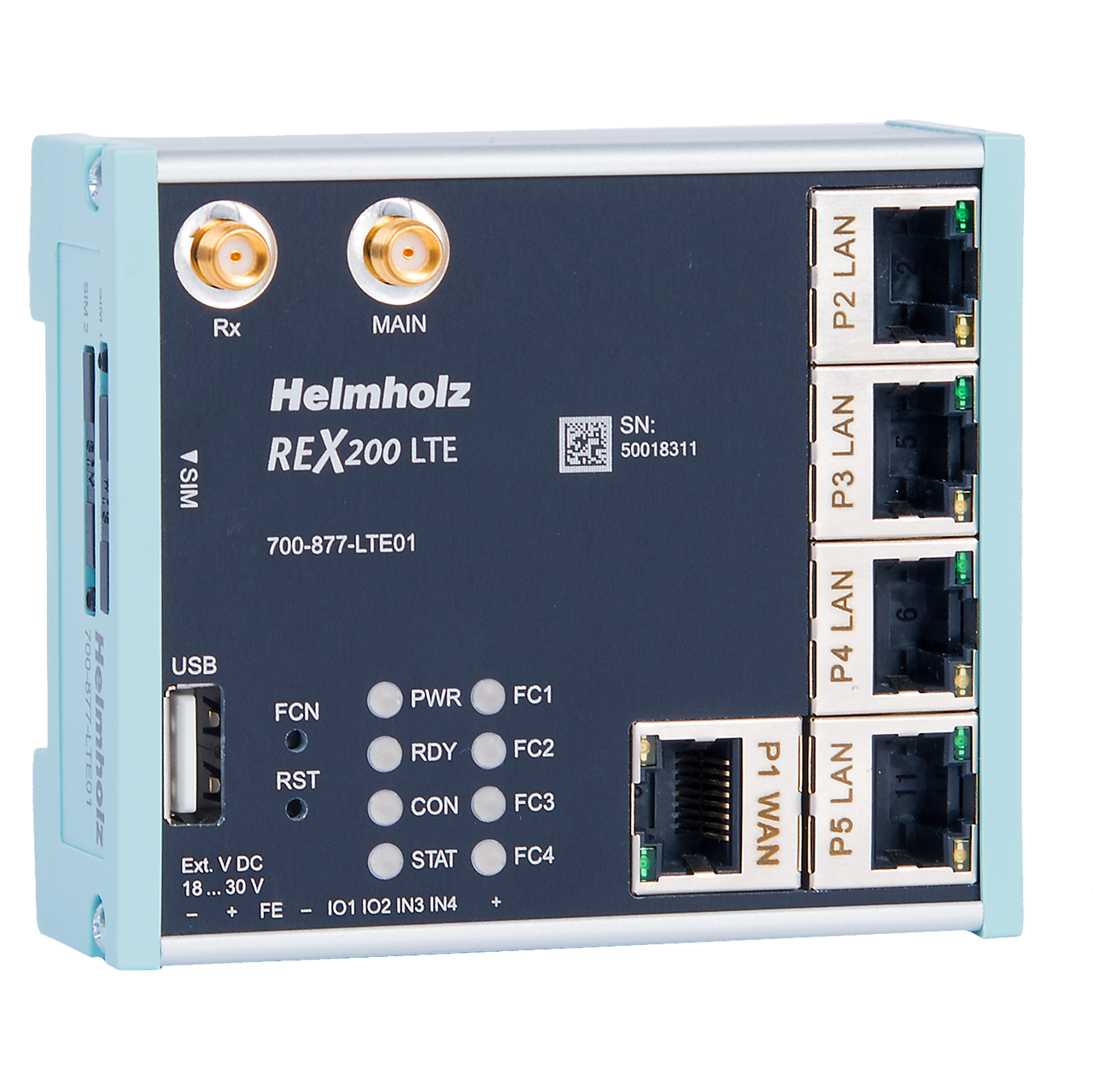

REX 200
Complete range of functions
of REX 100
More digital inputs and outputs
Faster processor for more data throughput
Data point server
(REX router can read data from PLC for alarming or visualization)
REX 250
Complete range of functions
of REX 100 and REX 200
Serial interface with adjustable protocol
Profibus Interface
myREX24 V2 - Commissioning and Management of REX Ethernet Routers
Failover - Integrated Cellular or WIFI Modem for Mobile Controls and Connection Critical Machines.
For each router series - REX 100, REX 200, REX 250 - different hardware equipment is available. For example, connection-critical production machines can be connected via Ethernet. In the event of a failure of the Ethernet connection, the fail-over mechanism causes the mobile modem to power up and the system remains accessible to the programmer via VPN.
„The routers are very scalable“, Marius Damm cites as the first argument and adds, „Unlike other providers, I can cover all transmission standards such as WAN or GSM with a single REX device.“
Marius Damm, Deputy Head of Electrical Engineering, Wickert Maschinenbau GmbH
REX Router: Our Industrial Router Series

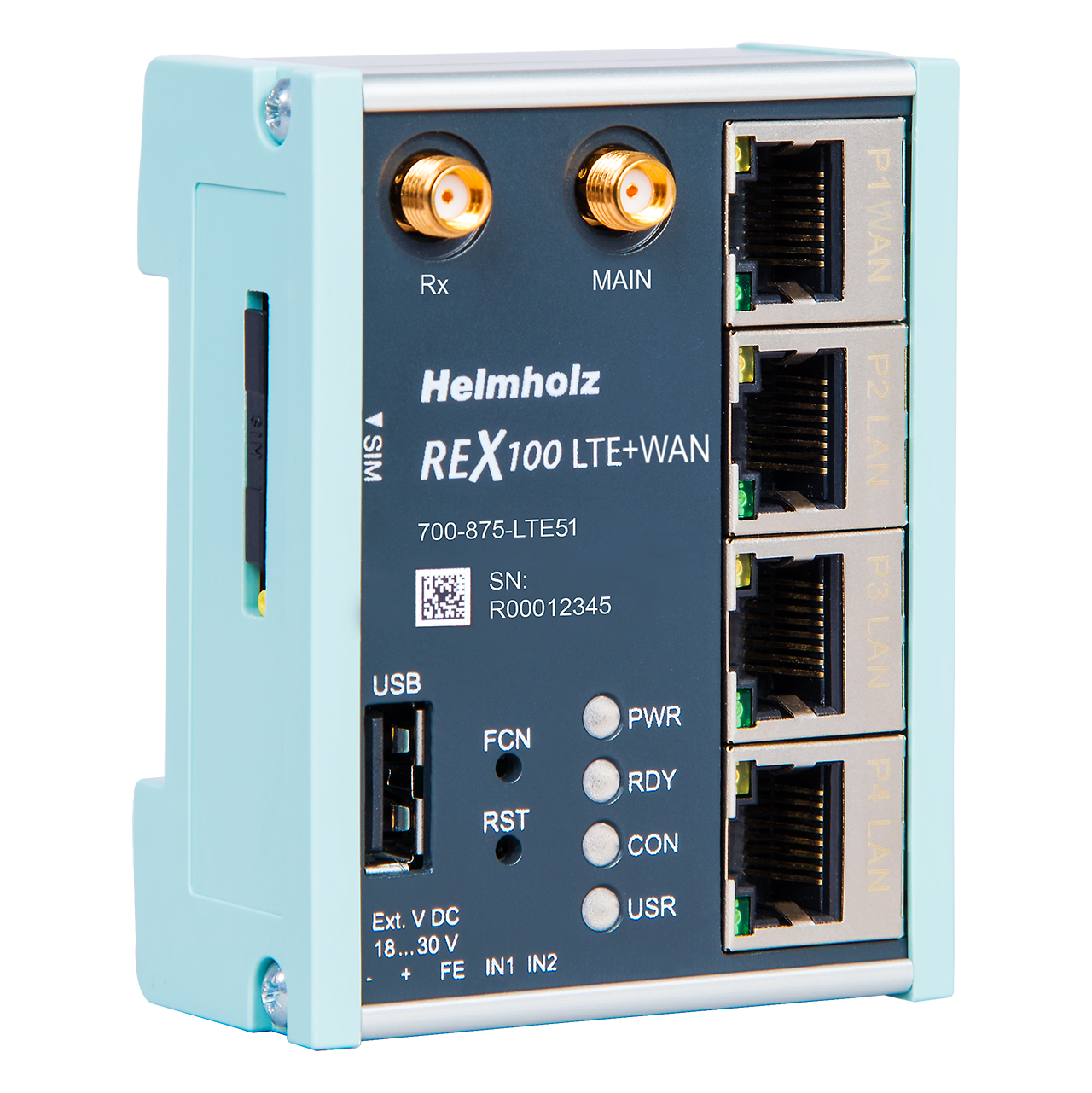

REX 100 - Simple remote maintenance
- Router without WAN interface: 4-port LAN switch (4G/WiFi)
- Router with WAN interface: 3-port LAN switch (WAN)
- USB interface for data carrier access and USB-Over-IP
- 2 digital inputs/outputs for connection establishment, status display and alarming
- Also available with LTE modem for use in North America "NAG version"
REX 250 - For PROFIBUS
- Ethernet router for WAN, LTE and WiFi
- REX 250 always have a WAN interface OnBoard
- USB interface for data carrier access and USB-over-IP
- 4 digital inputs/outputs for connection establishment, status display and alarming
- Read, visualize, alarm and log data from PLCs
- DHCP server, DNS server, Dyn DNS, NTP server, PPP server (DSL modem)
- PROFIBUS interface
- Serial interface (configurable RS485, RS232)

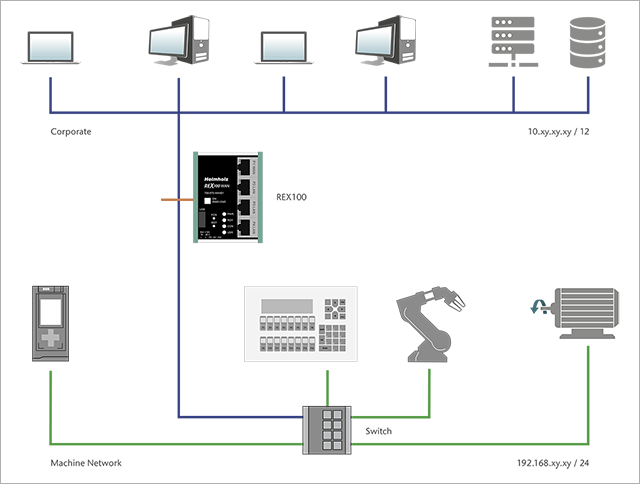

Safer and more efficient network topologies through microsegmentation in the factory network.
Fieldbus systems such as PROFINET have a high proportion of broadcast communication. Behind this are useful mechanisms for detecting fieldbus nodes. However, this data load is undesirable in the classic corporate network / factory network and can cause problems by overloading switches. REX Ethernet routers thus fulfill further useful tasks as gatekeepers (conduit) between two networks (zones) in addition to remote maintenance.
Small Firewall Settings with big Effect in the Network
- NAT
Prevents IP address collisions when connecting multiple series machines in the store floor area - Firewall
MAC, IP and packet filters can be used to specifically restrict or release traffic. - Microsegmentation
RRouters prevent network congestion by blocking broadcast and multicast telegrams (LLDP, DCP, etc.). Broadcast data traffic does not migrate into the company network.

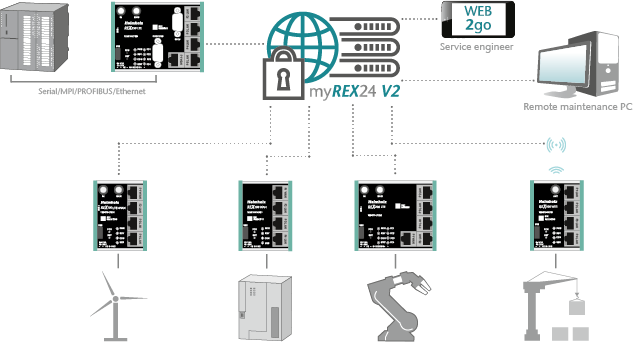

myREX24 V2 - The Remote Maintenance Portal for Router Updates, Configuration and Connection Setup
The REX routers are designed for operation in interaction with the myREX24 V2 portal: The complete parameterization and remote maintenance is done via the portal. In addition to remote maintenance, the REX Routers can also read and visualize data from the PLC and generate alarms.
First Steps - myREX24 V2 Portal Configuration and Commissioning of a REX Router
Success Stories: REX Industrial Router
Discover how our REX industrial routers and the myREX24 portal optimize our customers' machine communication and improve their maintenance processes. With customized solutions that we develop together, we support our customers in achieving their business goals by providing them with a reliable and secure remote access to their equipment. Explore our success stories and learn how you can benefit from the advantages of our solutions.
Convenient Machine Communication
Remote access to Ethernet systems via a secure VPN tunnel has become widespread. However, many details determine how good and how practicable a corresponding solution actually is.
Read more
Focus on Secure Remote Maintenance and Network Integration
To implement the remote and integration capability, two components from Helmholz were chosen: the REX 100 industrial router and the WALL IE industrial NAT gateway.
Read more

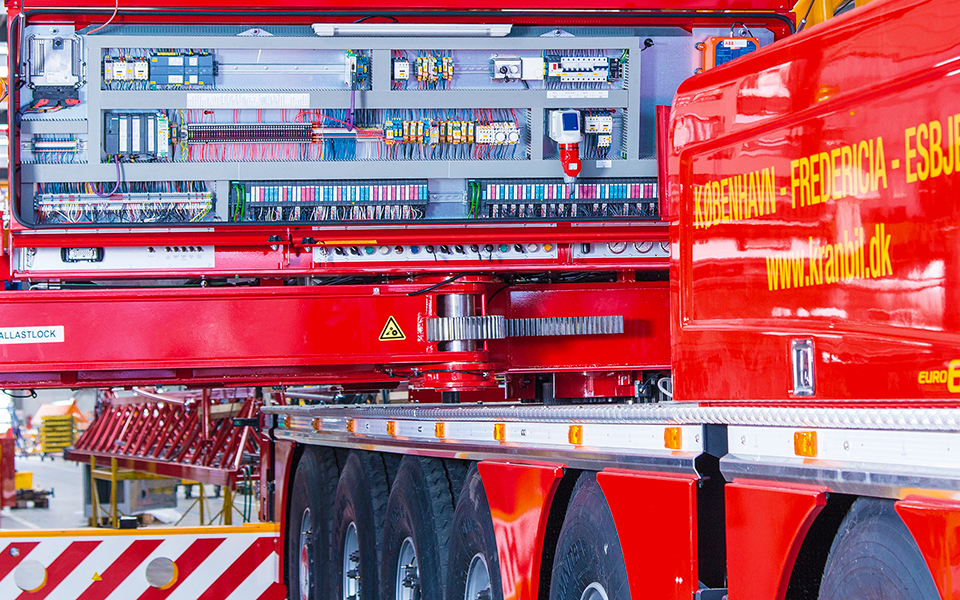

REX and myREX24 - Industrial Routers from Helmholz make Mobile Cranes even better
Worldwide remote maintenance service is included with the mobile accessible industrial routers. They enable secure remote access to crane crane systems via a virtual server.
Read more
Facts and Figures - REX Ethernet Router
Learn more about technical data, technology, references and much more.
