The Managed FLEXtra PROFINET-Switch.
Industrial Systems with PROFINET and Gigabit Ethernet.
The managed FLEXtra PROFINET switch can be used to network PROFINET components at 100 Mbps as well as Ethernet nodes at up to 1000 Mbps - optionally also via SFP fiber optics. Thus, communication from the control level and the machine or the mixing of Ethernet and PROFINET components in one switch is possible. Backups of industrial PCs (IPC), live streams from webcams and edge gateways benefit from the increased bandwidth.
Sophisticated Networks even in Control Cabinets with a low Installation Depth
Network Ports
Configurable
Each port of the PROFINET switch can be parameterized individually. This includes the transmission rate, topology detection (LLDP), automatic addressing (DCP), media redundancy (MRP) and much more.
Diagnostics and Connection Monitoring
Diagnostic alarms can be sent via PROFINET for network monitoring. The diagnostic LEDs on the front of the device and the status page of the web interface support troubleshooting at the control cabinet.
Vertical
Cable Outlet
Uncomplicated wiring due to RJ45 / SFP ports facing downwards. The low installation depth of the PROFINET switch of 78 mm allows installation in small control cabinets. Ideal for distributions that are installed in the field.
Smart
Managed
In addition to PROFINET, further management functions of the Ethernet network such as SNMP, NTP, VLAN, port mirroring, QoS/CoS mapping and extensive statistics can be accessed via the web interface.

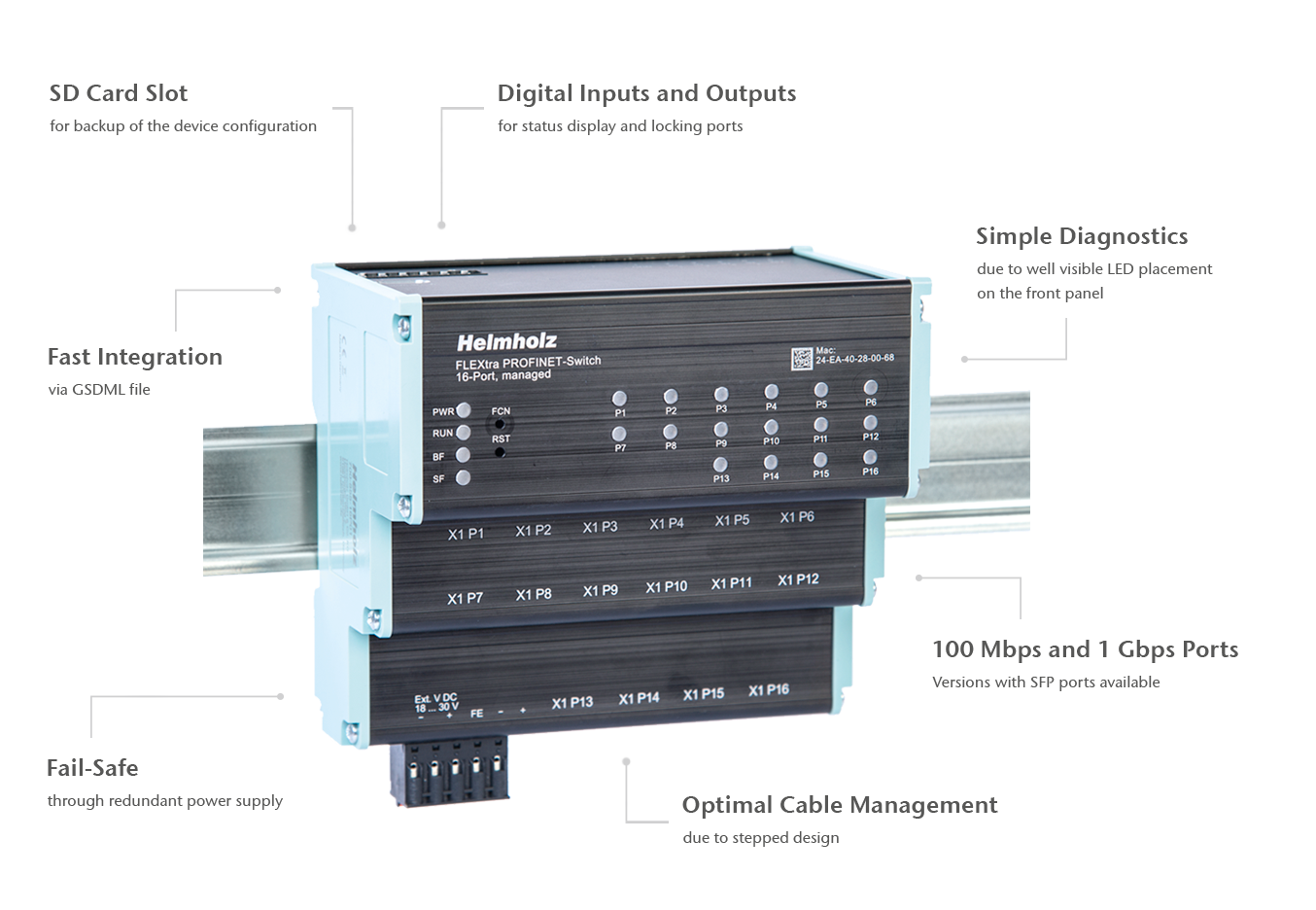

FLEXtra PROFINET Switch at a Glance
„Since commissioning, the network has been consistently stable and completely trouble-free.“
Dirk Urbach, technical service at the Elisental wire plant.

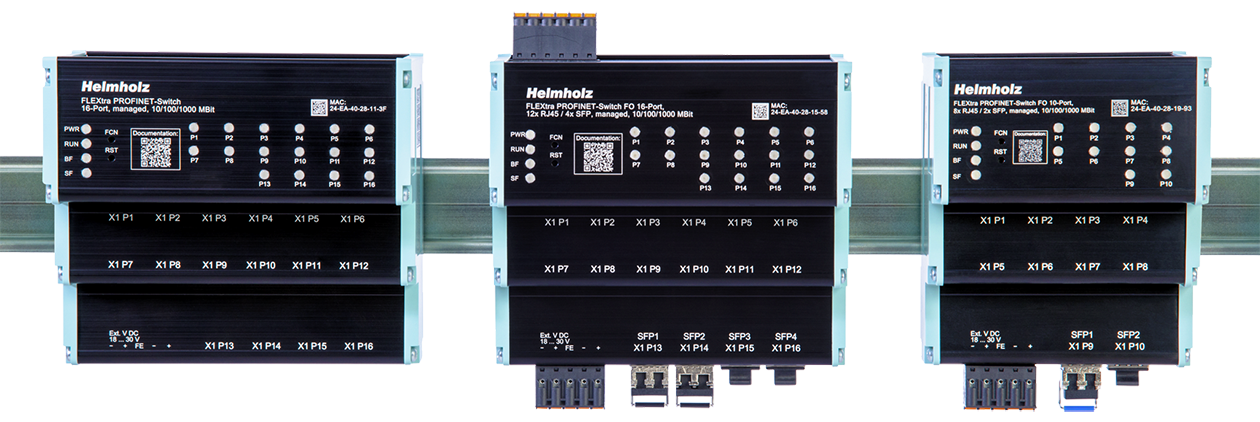

PROFINET Switches with SFP Slots for Fiber Optics, 16-port RJ45 or Small Overall Width

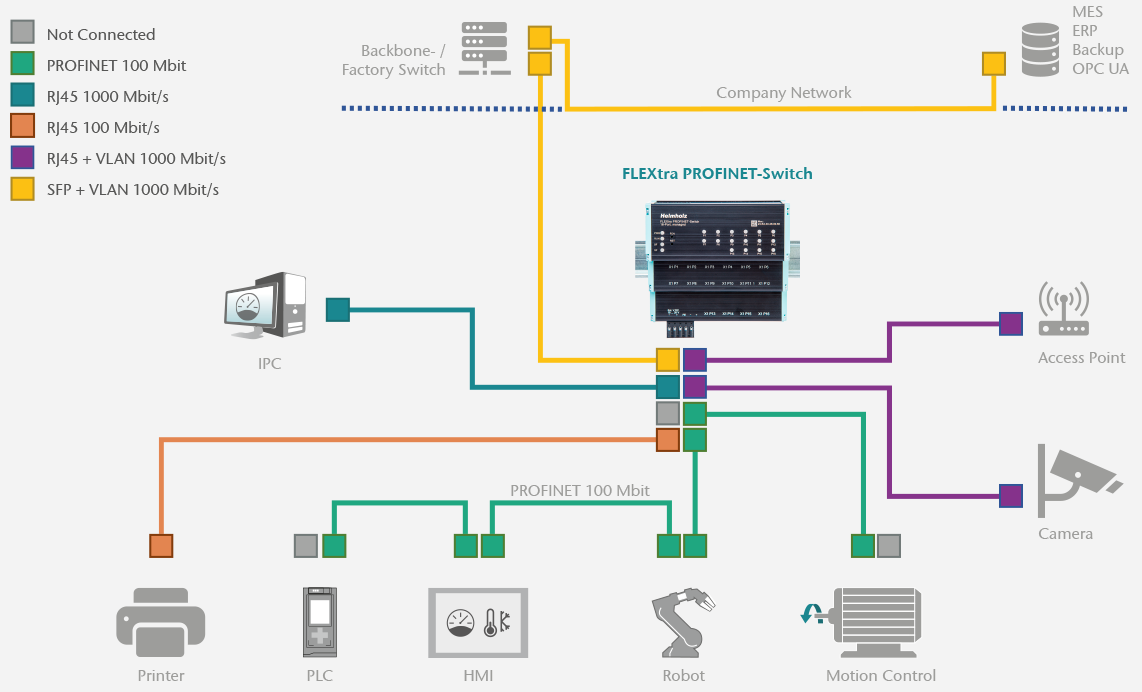

Higher Bandwidth from the Control Level to the Plant Network Through Hybrid Network Architectures.
Whether production data acquisition, backups of IPCs, VNC sessions or remote connection to graphics-intensive visualizations - you all benefit from a stable connection and high bandwidths. The FLEXtra PROFINET switches make it possible to connect more power-intensive components at up to 1000 Mbps without compromising the prioritization of the PROFINET infrastructure.
We Support you with the Conceptual Design for your Network Architecture
Careful network planning for future-proof installations is essential. We support you in selecting the appropriate switches, NAT gateways, remote maintenance routers or fieldbus couplers. Feel free to send us your initial ideas or a sketch of the architecture.

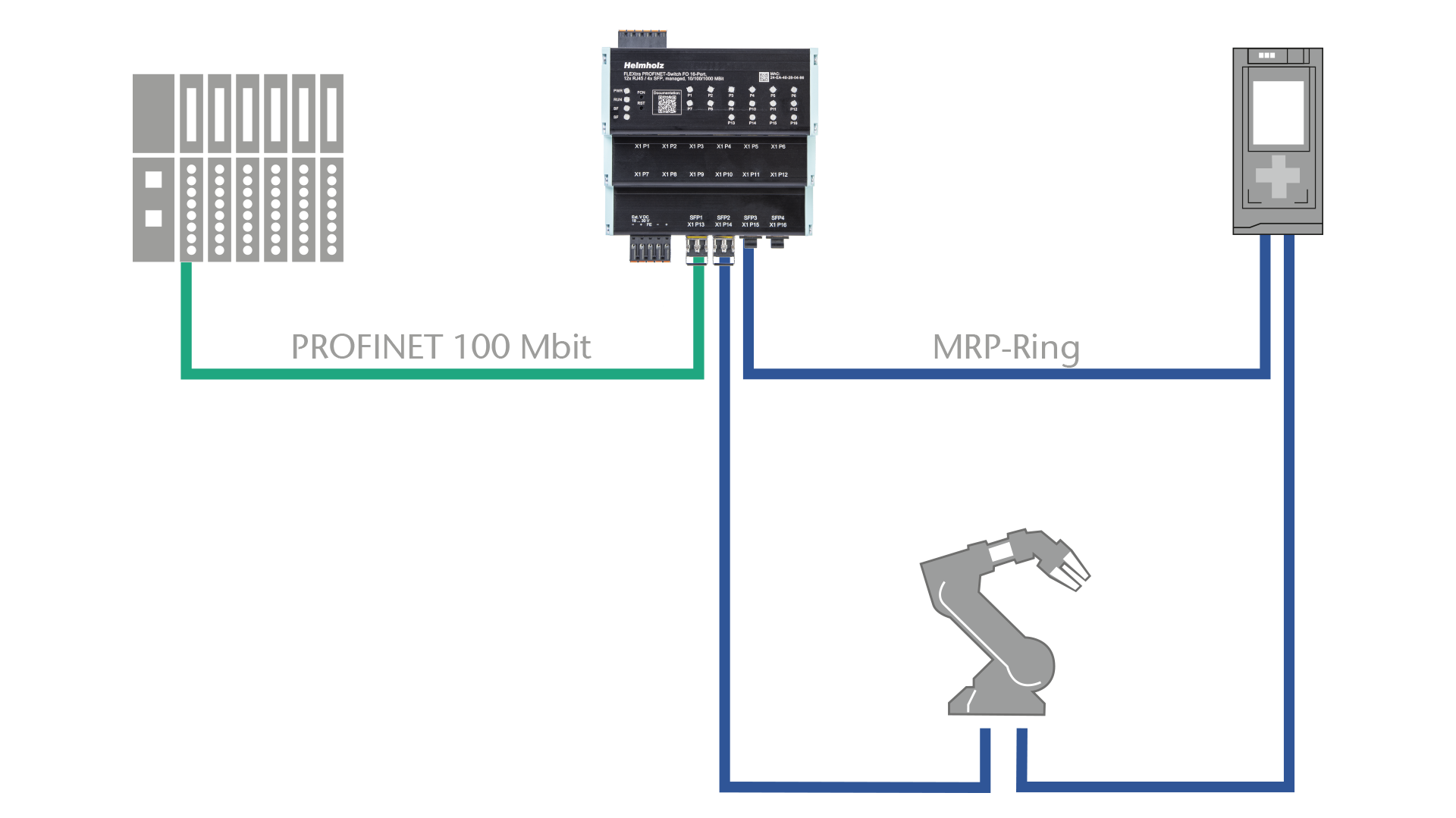

Setting up Fail-Safe PROFINET Networks Through Media Redundancy
The "Media Redundancy Protocol" (MRP) can be used to install ring cabling that allows the PROFINET network to operate even if a cable or a node fails. A PROFINET switch sends diagnostic messages to the PLC in the event of connection interruptions. Conventional unmanaged switches do not support this function in PROFINET.
Netzwerkmanagement mit Hardware und Software Funktionen
Network Ports via Digital
Switching Inputs and Outputs

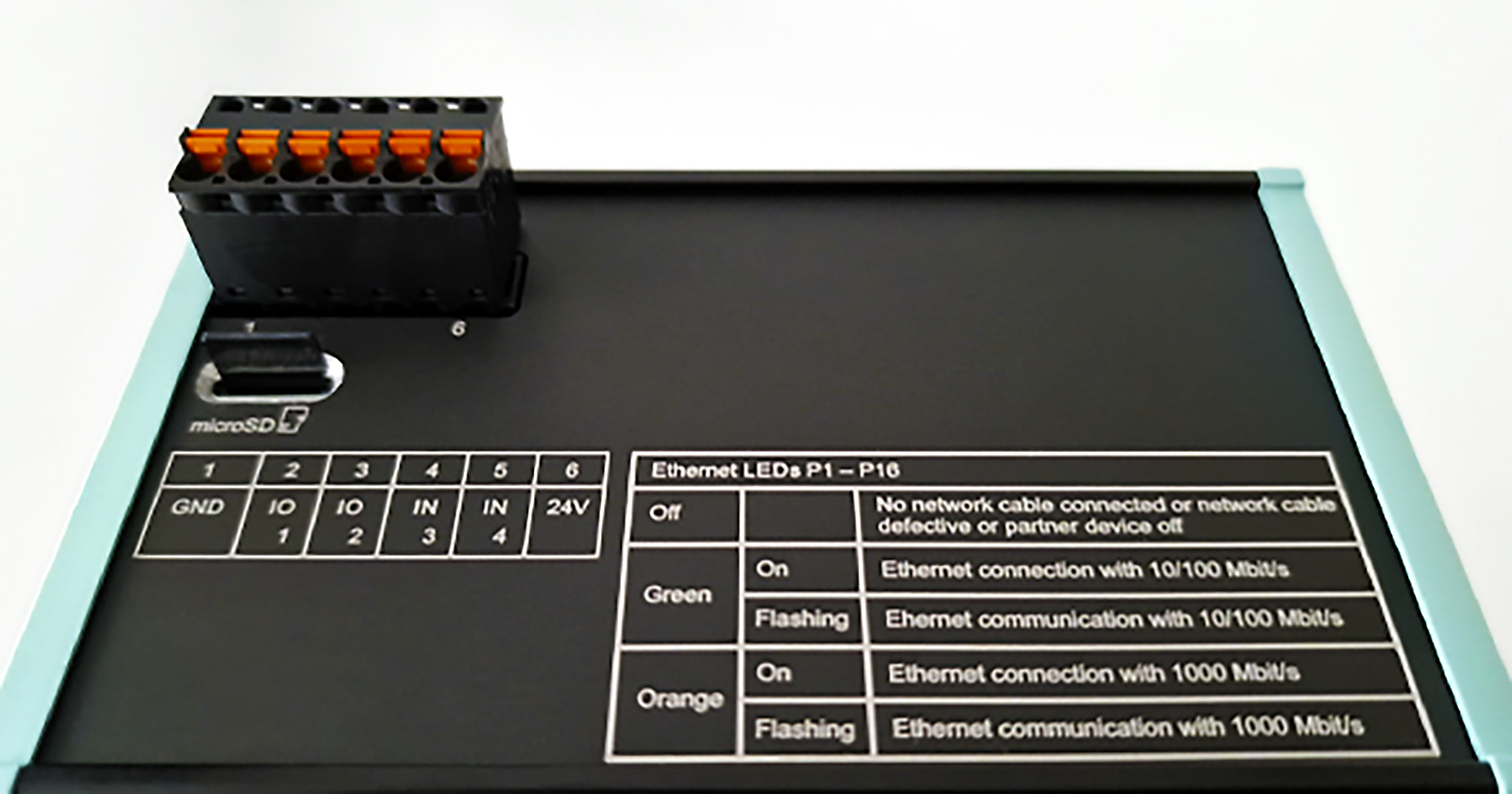

Bits in the PROFINET-IO image of the switch as well as 4 digital inputs and 2 digital outputs with 24V can be used as inputs and outputs. The assignment can be configured via the GSDML file.
Network Ports via Digital
Switching Inputs and Outputs
Bits in the PROFINET-IO image of the switch as well as 4 digital inputs and 2 digital outputs with 24V can be used as inputs and outputs. The assignment can be configured via the GSDML file.

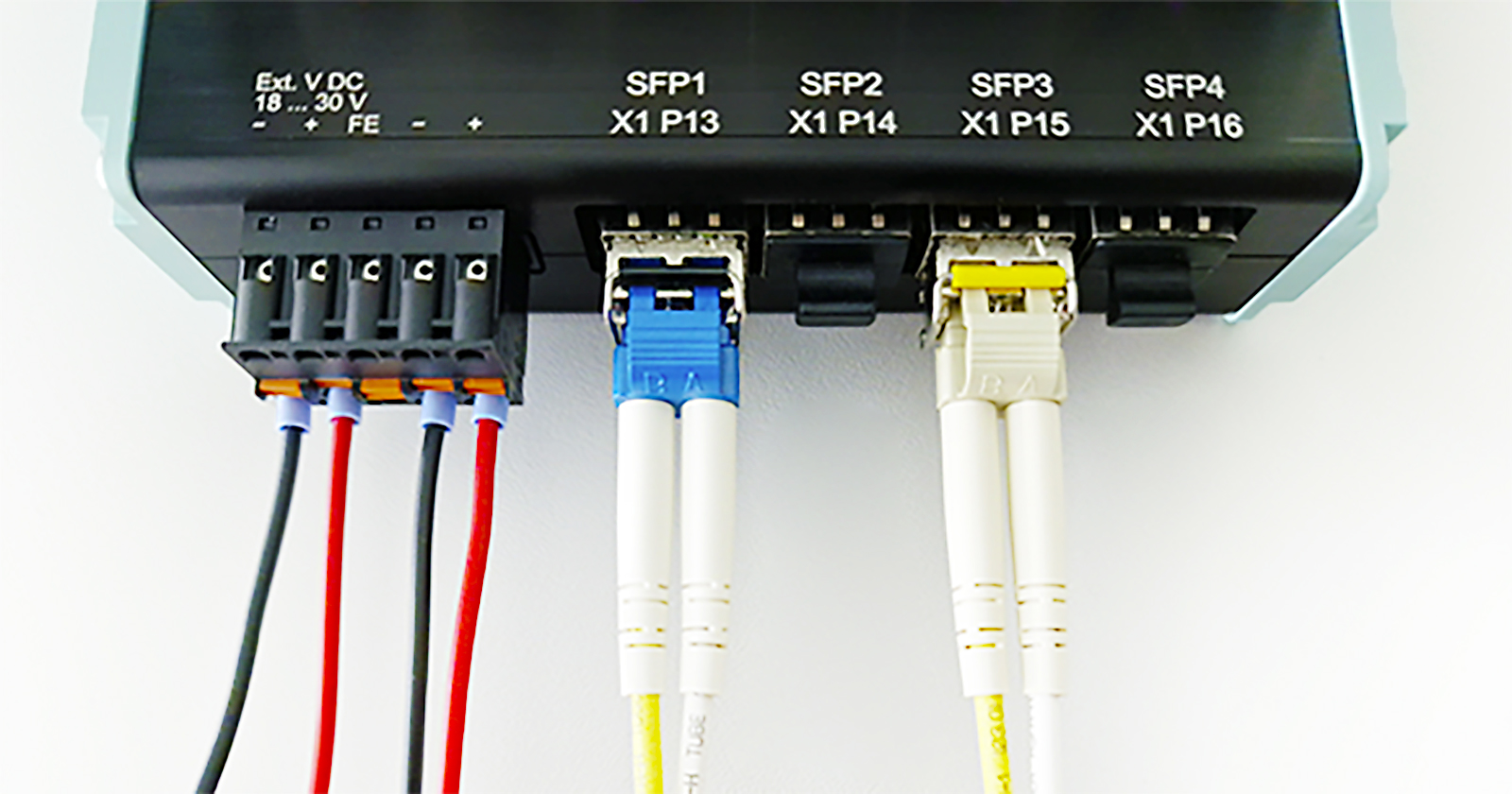

Helmholz SFP Transceiver
for Correct Cabling and Diagnostics
Both SM "Single Mode" and MM "Multi Mode" SFP modules with 1000 Mbit/s transmission rate are supported. Any SFP modules from various manufacturers can be used. However, if the recommended Helmholz SFP modules are configured, the FLEXtra PROFINET switch checks whether exactly the configured SFP module has been plugged into the specified port. In case of a missing SFP module or a SFP module of a different type, a diagnosis is triggered. Thus a wrong configuration or a wrong cabling can be detected easily.

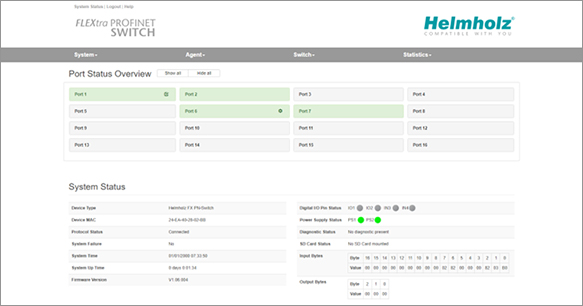

Smart Managed — Web Interface for Status Display and Configuration of the Ports.
The status of the FLEXtra PROFINET switch can be queried via the web interface. Firmware updates, management function and many other settings are done via a comfortable and tidy interface.

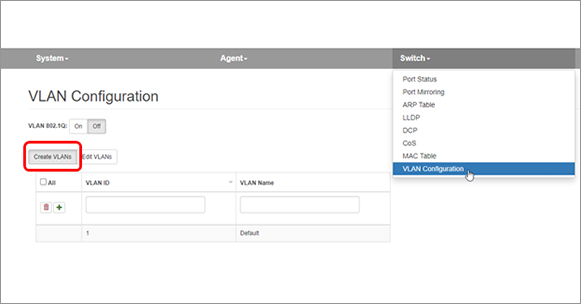

IEEE 802.1Q — Ethernet Frames
Network SStructures with VLANs
A VLAN separates physical networks into subnets by ensuring that VLAN-capable switches do not forward data packets to another VLAN. Devices logically connected via a VLAN remain among themselves. The use of VLANs in large physical networks is useful for controlling data traffic and securing access rights to devices. The FLEXtra PROFINET switch supports VLANs, both tagged and untagged, and can operate as a VLAN active and VLAN inactive device.
Success Stories: The FLEXtra, Other Switches and Firewalls for PROFINET
We are your partner for demanding network solutions in the field of PROFINET and Industrial Ethernet. Our powerful switches, gateways, and couplers ensure efficient and fail-safe connection of machines to the corporate network. Learn how customers have successfully connected plants and optimized production processes.
Trend-setting Network Solution for Machine Controls
On the wire with switches and firewalls: How the Elisental wire plant implements a forward-looking network solution for existing machine controls with Helmholz.
Read more
Robust and Fail-safe PROFINET Switches in Practical Use
Future-proof machine networks: Anyone who builds machines and plants with a very long operating life, like Erema, always has the future in mind.
Read more

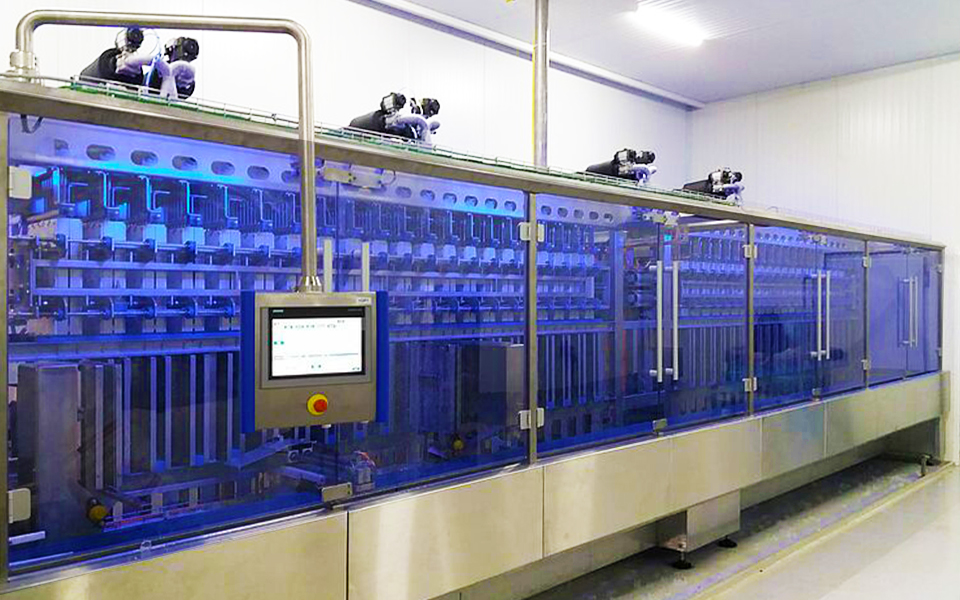

Efficient Ice Cube Production with IP67 PROFINET Switches
All PROFINET elements, 44 servo motors with integrated drives, 4 valve terminals and the remote IO, are connected to the managed PROFINET switches of protection class IP67 via M12 technology.
Read moreFind the Right Switch for you
Whether Ethernet, PROFINET, managed, unmanaged or IP67 - Secure your customized network solution for permanent access to machines and systems.
