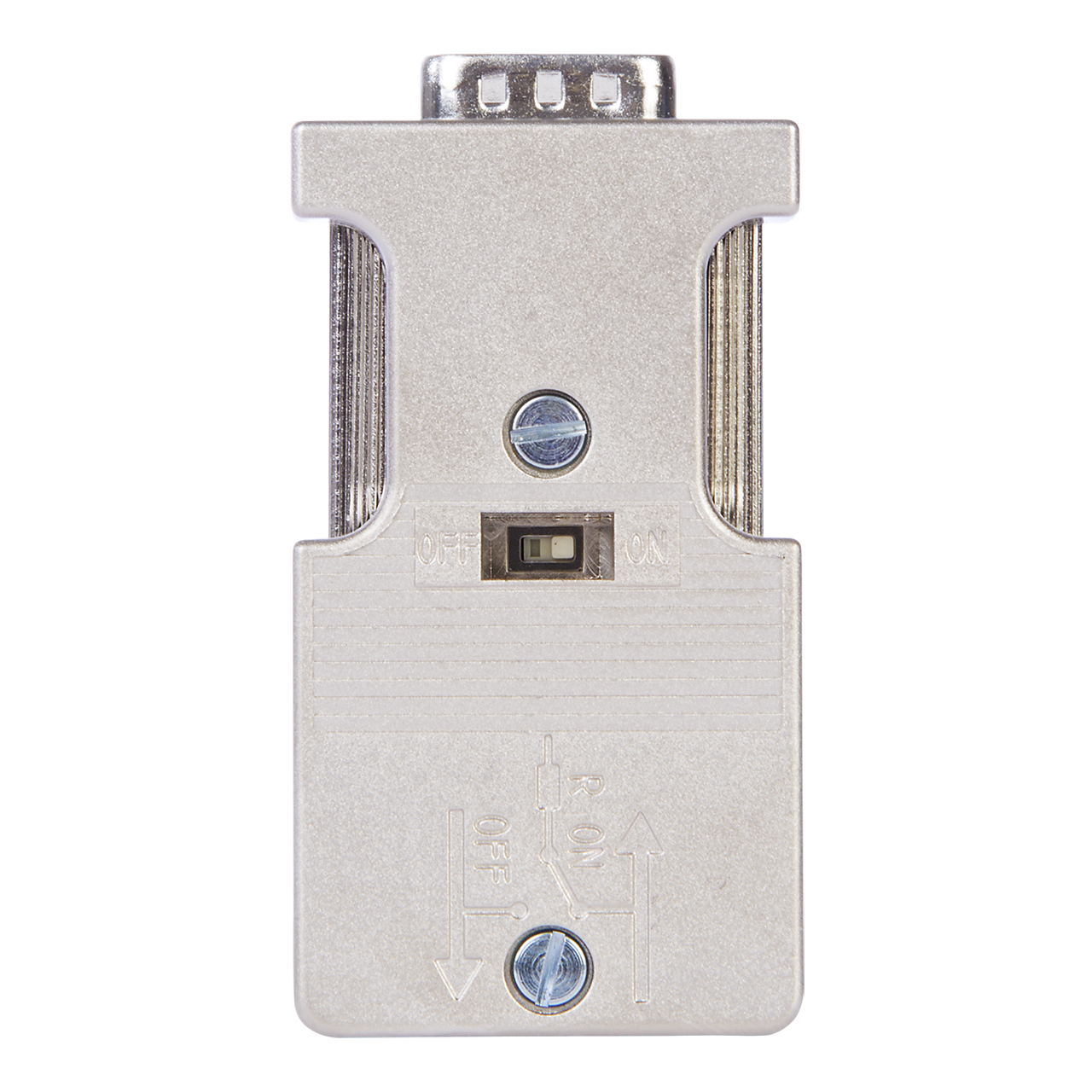

PROFIBUS Connector 180° Screw Terminals
PROFIBUS connector - proven and worldwide in use.
€42.43
PROFIBUS Connector 180° Screw Terminals
The PROFIBUS connector with axial cable outlet is equipped with a proven and reliable screw terminal.
It is quickly mounted and has integrated, connectible terminating resistors.
For improved EMC compatibility, the housing of the plug is metalized.
The PROFIBUS connector works in the extended ambient temperature range of -25 °C to +85 °C.
- Metalized housing
- No parts that can be lost
- Integrated switchable terminating resistor
- Axial cable outlet
- Proven screw terminal
- The PROFIBUS connectors are also available in packs of 10 or 50
- The maximum ambient temperature for UL is +60 °C
PROFIBUS Connector 180° Screw Terminals
General information
- Order number700-972-0CA12
- Article namePROFIBUS connector, axial, screw terminal
- Scope of deliveryPROFIBUS connector, installation instructions
- Dimensions (DxWxH)35 x 17 x 68 mm
- WeightApprox. 40 g
- Cable outletAxial cable outlet, suitable for FastConnect stripping tool
- Terminating resistorResistor combination integrated and switchable using slide switch
- PG connection socketNo
- PROFIBUS bus cable60/75 °C copper cable up to 1.0 mm2
- Maximum outside diameter8.0 mm
- Voltage supply+4.75 … +5.25 V DC (must come from the device)
- Current drawMax. 12.5 mA
PROFIBUS interface
- Number1
- Transmission ratemax. 12 Mbps
- ConnectionSUB-D connector, 9-pin
- ConnectionSUB-D connector, 9-pin
Connector
- Connector typeterminal strips
- Number4
- Number4
Ambient conditions
- Ambient temperature-25 °C … +85 °C( The maximum ambient temperature for UL is +60 °C.)
- Transport and storage temperature-25 °C … +85 °C
- Relative air humidity70 % at +25 °C
- Pollution degree2
- Protection ratingIP20
- ApprovalsCE, UL
PROFIBUS Connector 180° Screw Terminals
| Name | Version | Size |
| PROFIBUS Connector, Leaflet | 07-2015 | 650 KB |
| EG Declaration of Confirmity | 10-2018 | 64 KB |
