PROFINET Coupler, DP/PN

Machines and systems can be linked with fieldbus couplers. This makes data exchange between different control worlds possible. A complex CPU-to-CPU communication can be omitted. Depending on the fieldbus, the integration takes place via device description files such as GSD, GSDML or EDS.

Fieldbus Protocol

€530.00

Product number: 700-158-3DP02
Print view
Ask question Request offer

PROFINET Coupler, DP/PN

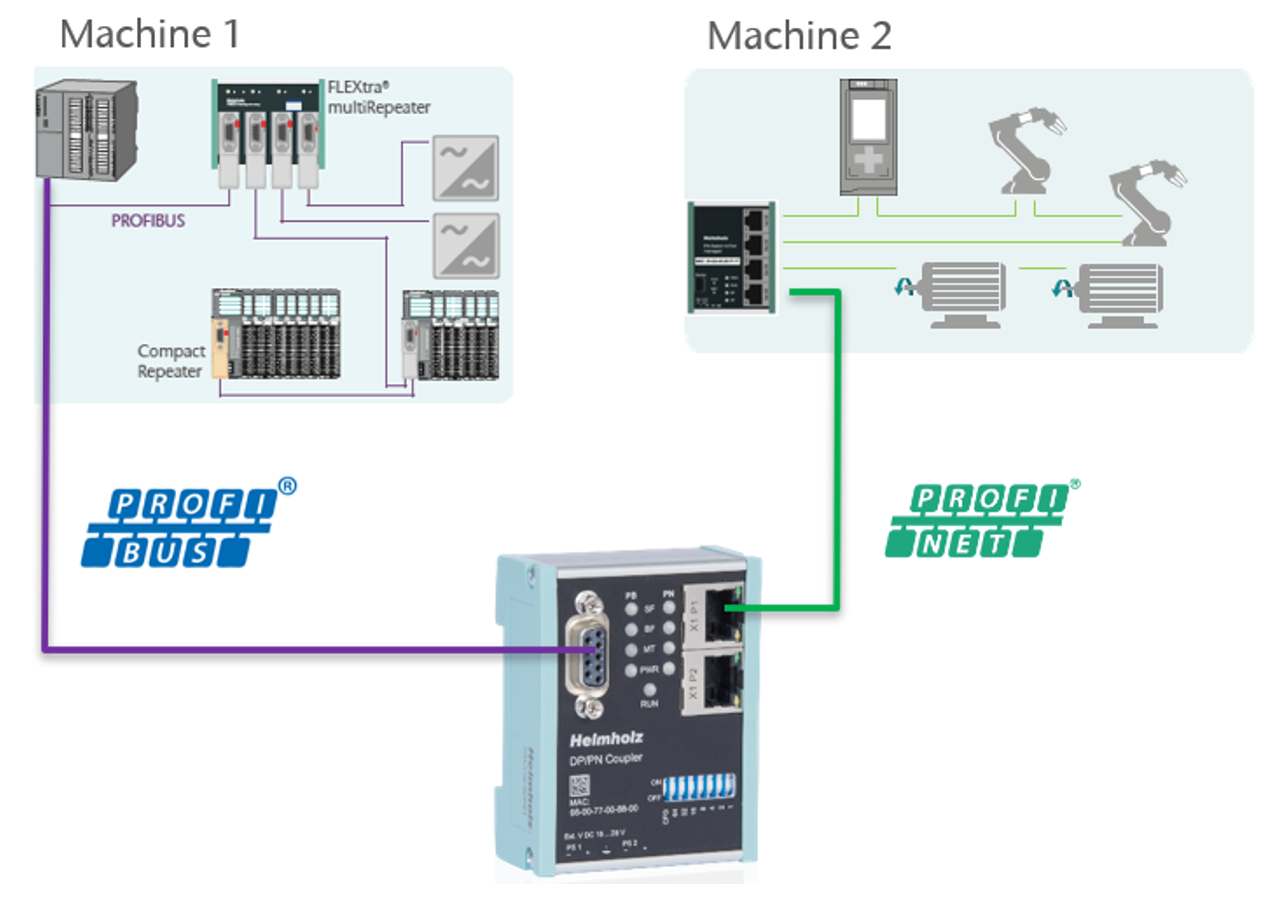

With the new DP/PN Coupler, a simple and uncomplicated connection of PROFIBUS to PROFINET is possible. It allows data transfer between a PROFIBUS master and a PROFINET controller. The maximum size of the transmitted data is 244 bytes of input data and 244 bytes of output data. The DP/PN Coupler is projected via a GSD file on the PROFIBUS side and a GSDML file on the PROFINET side. No additional configuration software is necessary.

  • Very compact design for DIN rail mounting
  • Exchange of up to 244 bytes I/O data
  • Redundant power supply
  • Galvanic separation of the networks
  • No influencing of the opposite side in the event of bus system failure
  • Setting of the PROFIBUS addresses using DIP switches or software
  • Configuration just with GSD/GSDML file

PROFINET Coupler, DP/PN

General information

  • Order number700-158-3DP02
  • Article nameDP/PN Coupler
  • Scope of deliveryDP/PN Coupler with power supply plug
  • Dimensions (DxWxH)32.5 x 58.5 x 76 mm
  • Weightapprox. 135 g

PROFINET interface (X1)

  • Number1
  • Connection2x RJ45, integrated switch
  • ProtocolPROFINET IO Device as defined in IEC 61158-6-10
  • Transmission rate100 Mbps full duplex
  • FeaturesMedia Redundancy Protocol (MRP)
  • automatic addressing
  • topology detection (LLDP, DCP)
  • diagnosis alarm
  • PROFINET conformance class B

PROFIBUS interface

  • ProtocolPROFIBUS-DP
  • Connection9-pin D-sub female connector
  • Transmission ratemax. 12 Mbps, autom. detection
  • I/O image sizemax. 244 bytes of input / 244 bytes of output data

Status indicator

  • Function status9 LEDs
  • Ethernet status4 LEDs

Power supply

  • Operating voltage24 V DC (18 ... 28 V DC)
  • Current drawmax. 160 mA
  • Power dissipationmax. 3.9 W

Ambient conditions

  • Ambient temperature0 °C to 60 °C
  • Transport and storage temperature-20 °C to 80 °C
  • Relative air humidity95 % r H without condensation
  • Protection ratingIP 20
  • Mounting positionas desired
  • ApprovalsCE, UL

UL

  • ULUL 61010-1 / UL 61010-2-201
  • Voltage supplyDC 24 V (18 ... 28 VDC, SELV and limited energy circuit)
  • Pollution degree2
  • AltitudeUp to 2000m
  • Temperature cable rating87 °C



PROFINET Coupler, DP/PN

With the new DP/PN Coupler, a simple and uncomplicated connection of PROFIBUS to PROFINET is possible. It allows data transfer between a PROFIBUS master and a PROFINET controller. The maximum size of the transmitted data is 244 bytes of input data and 244 bytes of output data. The DP/PN Coupler is projected via a GSD file on the PROFIBUS side and a GSDML file on the PROFINET side. No additional configuration software is necessary.

  • Very compact design for DIN rail mounting
  • Exchange of up to 244 bytes I/O data
  • Redundant power supply
  • Galvanic separation of the networks
  • No influencing of the opposite side in the event of bus system failure
  • Setting of the PROFIBUS addresses using DIP switches or software
  • Configuration just with GSD/GSDML file

PROFINET Coupler, DP/PN

General information

  • Order number700-158-3DP02
  • Article nameDP/PN Coupler
  • Scope of deliveryDP/PN Coupler with power supply plug
  • Dimensions (DxWxH)32.5 x 58.5 x 76 mm
  • Weightapprox. 135 g

PROFINET interface (X1)

  • Number1
  • Connection2x RJ45, integrated switch
  • ProtocolPROFINET IO Device as defined in IEC 61158-6-10
  • Transmission rate100 Mbps full duplex
  • FeaturesMedia Redundancy Protocol (MRP)
  • automatic addressing
  • topology detection (LLDP, DCP)
  • diagnosis alarm
  • PROFINET conformance class B

PROFIBUS interface

  • ProtocolPROFIBUS-DP
  • Connection9-pin D-sub female connector
  • Transmission ratemax. 12 Mbps, autom. detection
  • I/O image sizemax. 244 bytes of input / 244 bytes of output data

Status indicator

  • Function status9 LEDs
  • Ethernet status4 LEDs

Power supply

  • Operating voltage24 V DC (18 ... 28 V DC)
  • Current drawmax. 160 mA
  • Power dissipationmax. 3.9 W

Ambient conditions

  • Ambient temperature0 °C to 60 °C
  • Transport and storage temperature-20 °C to 80 °C
  • Relative air humidity95 % r H without condensation
  • Protection ratingIP 20
  • Mounting positionas desired
  • ApprovalsCE, UL

UL

  • ULUL 61010-1 / UL 61010-2-201
  • Voltage supplyDC 24 V (18 ... 28 VDC, SELV and limited energy circuit)
  • Pollution degree2
  • AltitudeUp to 2000m
  • Temperature cable rating87 °C



PROFINET Coupler, DP/PN

Technical Documentation
Name Version Size
DP/PN Coupler V2, Quick Start Guide 9 1 MB
DP/PN Coupler V2, PROFINET-Certificate   82 KB
EU Declaration of Confirmity 04-2020 51 KB
Flyers
Name Version Size
DP/PN Coupler - PROFIBUS PROFINET easily connected 11-2019 586 KB
Easy connection of fieldbus networks – with Helmholz PROFINET gateways 10-2023 1 MB
License Agreements
Name Version Size
DP/PN Coupler, license terms   314 KB
Software
Name Version Size
IPSet 1.04.016 23 MB
DP/PN Coupler, GSDML file for 700-158-3DP01 (V1) and 700-158-3DP02 (V2) 20200909 8 KB
DP/PN Coupler, GSD file for 700-158-3DP02 (V2) V2.01 9 KB
DP/PN Coupler, Firmware for 700-158-3DP02 (V2) V2.02.014 7 MB
DP/PN Coupler, GSD file for 700-158-3DP01 (V1) V1.00 8 KB
Planning Tools
Name Version Size
DP/PN Coupler, STEP files   3 MB
EPLAN Data Portal, Helmholz product macros
DP/PN Coupler V2, STEP files   3 MB
