PROFINET/CAN-Gateway SLIM, CANopen Master

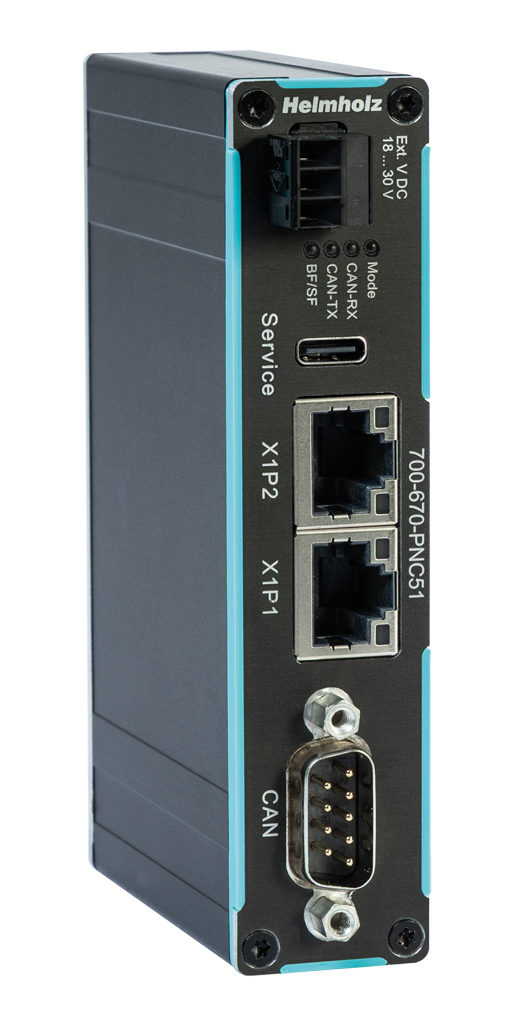

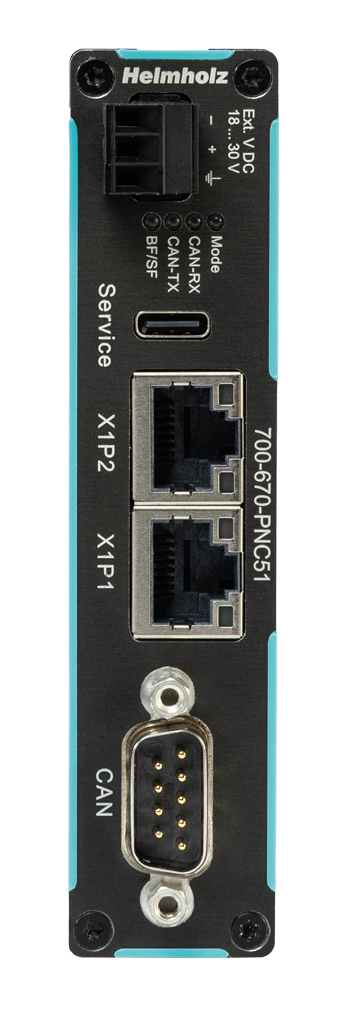

The PN/CAN gateway SLIM enables simple and straightforward connection of CAN devices to a PROFINET network. On the CAN side, various CAN protocol variants are supported.€581.00
PROFINET/CAN-Gateway SLIM, CANopen Master
The PN/CAN gateway SLIM, CANopen represents a full-featured CANopen master. As a master, the gateway supports network management, SYNC telegrams, nodeguarding/heartbeat for monitoring the nodes and LSS services. Up to 16 PDOs can be configured per CANopen slave. The parameterization of the CANopen nodes via SDO telegrams and the management of emergency messages is also possible.
On the PROFINET network, the PN/CAN gateway is a PROFINET I/O device and supports transmission rates of up to 100 Mbit full duplex; on the CAN bus, up to 1 Mbit/s is supported.
The I/O data of the CAN nodes are mapped transparently and freely configurable into the PROFINET network and can thus be processed directly in the PLC. The PN/CAN gateway is integrated into the hardware configurator with a GSDML file and can be fully configured there. Further software tools for parameterization, or handling blocks for programming, are not necessary, which makes the use of the gateway uncomplicated.
The features MRP (media redundancy) as well as extensive diagnostic functions and an interface for online diagnostics complete the performance characteristics of the PN/CAN gateway.
- CANopen Master according to CANopen® protocol DSP 301
- Up to 126 CANopen slaves with up to 16 TPDOs / 16 RPDOs each
- Up to 1420 bytes input and 1420 bytes output data on PROFINET
- Up to 1 Mbit/s CAN bit rate
- Heartbeat, Nodeguarding, SYNC
- PROFINET Conformance Class C
- Media redundancy (MRP client)
- Configuration via GSDML file
- No handling blocks or parameterization software necessary
- USB device interface for online diagnosis and firmware update
- slim design
PROFINET/CAN-Gateway SLIM, CANopen Master
General Information
- Order-no.700-670-PNC51
- NamePROFINET/CAN-Gateway SLIM, CANopen Master
- Scope of deliveryPROFINET/CAN-Gateway SLIM with Power Plug
- Diemnsions (D x W xH)65 x 25 x 109 mm
- WeightApprox. 160g
PROFINET-interface
- Number1
- Connection2x RJ45, integrated Switch
- Transmission rate100 MBpbs, full dupley
- ProtocolPROFINET IO Device as defined in IEC 61158-6-10
- I/O image sizemax. 1440 bytes inputdata / 1440 bytes outputdata
- FeaturesPROFINET Conformance Class C, Media redundancy (MRP client), Automatic addressing, Topology detection (LLDP, DCP), Diagnosis alarms
CAN-interface
- Number1
- TypeISO/DIN 11898-2 CAN High Speed physical Layer
- Connection9-pin D-sub male connector
- Baud rate10, 50, 100, 125, 250, 500, 800, 1000 kbps
- ProtocolCANopen master as defined in DSP301 V4.2
- Number of slaves126
- TPDOs / RPDOs per slave16 / 16
USB interface
- ProtocolUSB 2.0 Device, Full Speed
- ConnectionUSB-C
- Electrically isolation500 V
Status indicator
- Function status4 LEDs, bi-color
- Ethernet status4 LEDs
Power supply
- Operating voltage24 V DC, 18 - 30 V DC
- Current drawmax. 105mA at 24 V DC
- Power dissipationmax. 2,6 W
Ambient conditions
- Ambient temperature-40°C bis +75°C
- Transport and storage temperature-40°C bis +80°C
- Relative humidity95% without condensation
- Pollution degree2
- Protection ratingIP 20
- Mounting positionas desired
- ApprovalsCE
PROFINET/CAN-Gateway SLIM, CANopen Master
PROFINET/CAN-Gateway SLIM, CANopen Master
The PN/CAN gateway SLIM, CANopen represents a full-featured CANopen master. As a master, the gateway supports network management, SYNC telegrams, nodeguarding/heartbeat for monitoring the nodes and LSS services. Up to 16 PDOs can be configured per CANopen slave. The parameterization of the CANopen nodes via SDO telegrams and the management of emergency messages is also possible.
On the PROFINET network, the PN/CAN gateway is a PROFINET I/O device and supports transmission rates of up to 100 Mbit full duplex; on the CAN bus, up to 1 Mbit/s is supported.
The I/O data of the CAN nodes are mapped transparently and freely configurable into the PROFINET network and can thus be processed directly in the PLC. The PN/CAN gateway is integrated into the hardware configurator with a GSDML file and can be fully configured there. Further software tools for parameterization, or handling blocks for programming, are not necessary, which makes the use of the gateway uncomplicated.
The features MRP (media redundancy) as well as extensive diagnostic functions and an interface for online diagnostics complete the performance characteristics of the PN/CAN gateway.
- CANopen Master according to CANopen® protocol DSP 301
- Up to 126 CANopen slaves with up to 16 TPDOs / 16 RPDOs each
- Up to 1420 bytes input and 1420 bytes output data on PROFINET
- Up to 1 Mbit/s CAN bit rate
- Heartbeat, Nodeguarding, SYNC
- PROFINET Conformance Class C
- Media redundancy (MRP client)
- Configuration via GSDML file
- No handling blocks or parameterization software necessary
- USB device interface for online diagnosis and firmware update
- slim design
PROFINET/CAN-Gateway SLIM, CANopen Master
General Information
- Order-no.700-670-PNC51
- NamePROFINET/CAN-Gateway SLIM, CANopen Master
- Scope of deliveryPROFINET/CAN-Gateway SLIM with Power Plug
- Diemnsions (D x W xH)65 x 25 x 109 mm
- WeightApprox. 160g
PROFINET-interface
- Number1
- Connection2x RJ45, integrated Switch
- Transmission rate100 MBpbs, full dupley
- ProtocolPROFINET IO Device as defined in IEC 61158-6-10
- I/O image sizemax. 1440 bytes inputdata / 1440 bytes outputdata
- FeaturesPROFINET Conformance Class C, Media redundancy (MRP client), Automatic addressing, Topology detection (LLDP, DCP), Diagnosis alarms
CAN-interface
- Number1
- TypeISO/DIN 11898-2 CAN High Speed physical Layer
- Connection9-pin D-sub male connector
- Baud rate10, 50, 100, 125, 250, 500, 800, 1000 kbps
- ProtocolCANopen master as defined in DSP301 V4.2
- Number of slaves126
- TPDOs / RPDOs per slave16 / 16
USB interface
- ProtocolUSB 2.0 Device, Full Speed
- ConnectionUSB-C
- Electrically isolation500 V
Status indicator
- Function status4 LEDs, bi-color
- Ethernet status4 LEDs
Power supply
- Operating voltage24 V DC, 18 - 30 V DC
- Current drawmax. 105mA at 24 V DC
- Power dissipationmax. 2,6 W
Ambient conditions
- Ambient temperature-40°C bis +75°C
- Transport and storage temperature-40°C bis +80°C
- Relative humidity95% without condensation
- Pollution degree2
- Protection ratingIP 20
- Mounting positionas desired
- ApprovalsCE
PROFINET/CAN-Gateway SLIM, CANopen Master
