FLEXtra SLIM PROFINET-Switch, managed 5x RJ45
One of the most important functions of a managed PROFINET switch is the prioritisation of PROFINET telegram traffic in the machine network. You can integrate the switch into your automation environment as usual using a GSDML file.€365.00
FLEXtra SLIM PROFINET-Switch, managed 5x RJ45
One of the most important functions of a managed PROFINET-Switch is the prioritizing of the PROFINET frame traffic in the machine network. The managed switch can differentiate whether the frame is a web query, an FTP file transmission, a media stream, or a PROFINET frame. In the case of a high transmission load, the important frames can thus be prioritized in order to prevent frame losses.
With a GSDML file you can integrate the switch into your automation environment in the usual way.
The supported PROFINET protocols, such as LLPD, DCP, or even diagnosis alarms, can be easily configured and administered.
Technical advantages when using a PROFINET-Switch
- Prioritizing of PROFINET frames
- Assignment of a configuration via the device name
- Neighborhood detection
- Device exchange without programming device
- Ring redundancy
- Each port can be activated or deactivated
- Diagnostic messages for network problems
- Identification and maintenance data
- PROFINET Conformance Class B
- Integration into the automation network with GSDML file
- Quick, simple configuration and diagnosis via PROFINET and web interface
- LLPD, DCP, SNMP, diagnosis alarms
- VLAN
- Media redundancy: MRP client
- RSTP
- PROFINET Device Scanner
- Port mirroring
- Network statistics (frames and errors)

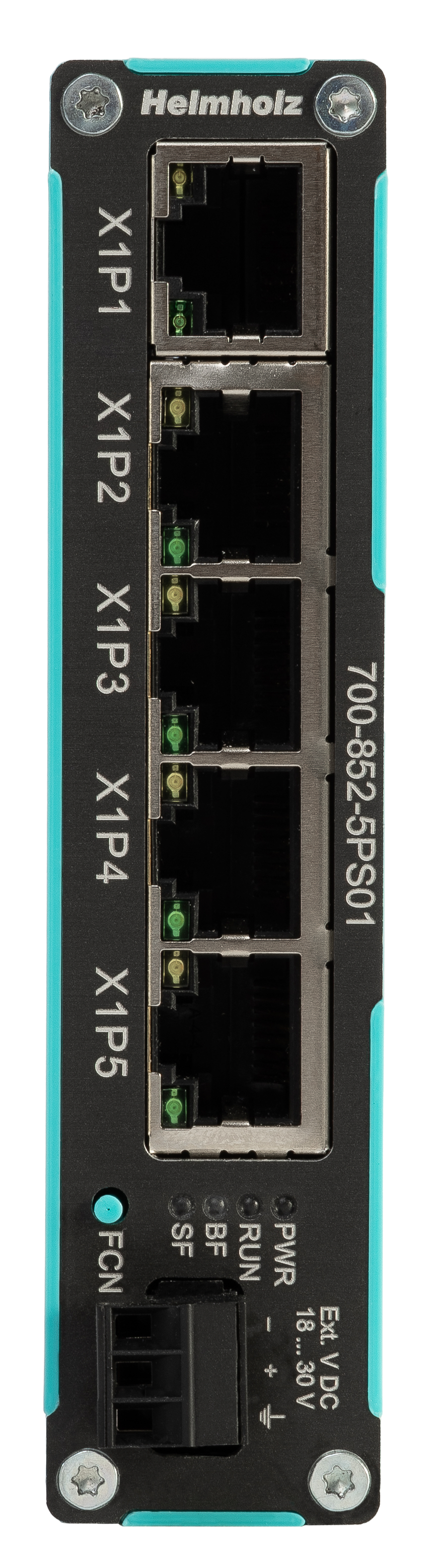

- Managed switch with 5 x 100 Mbps RJ45 ports

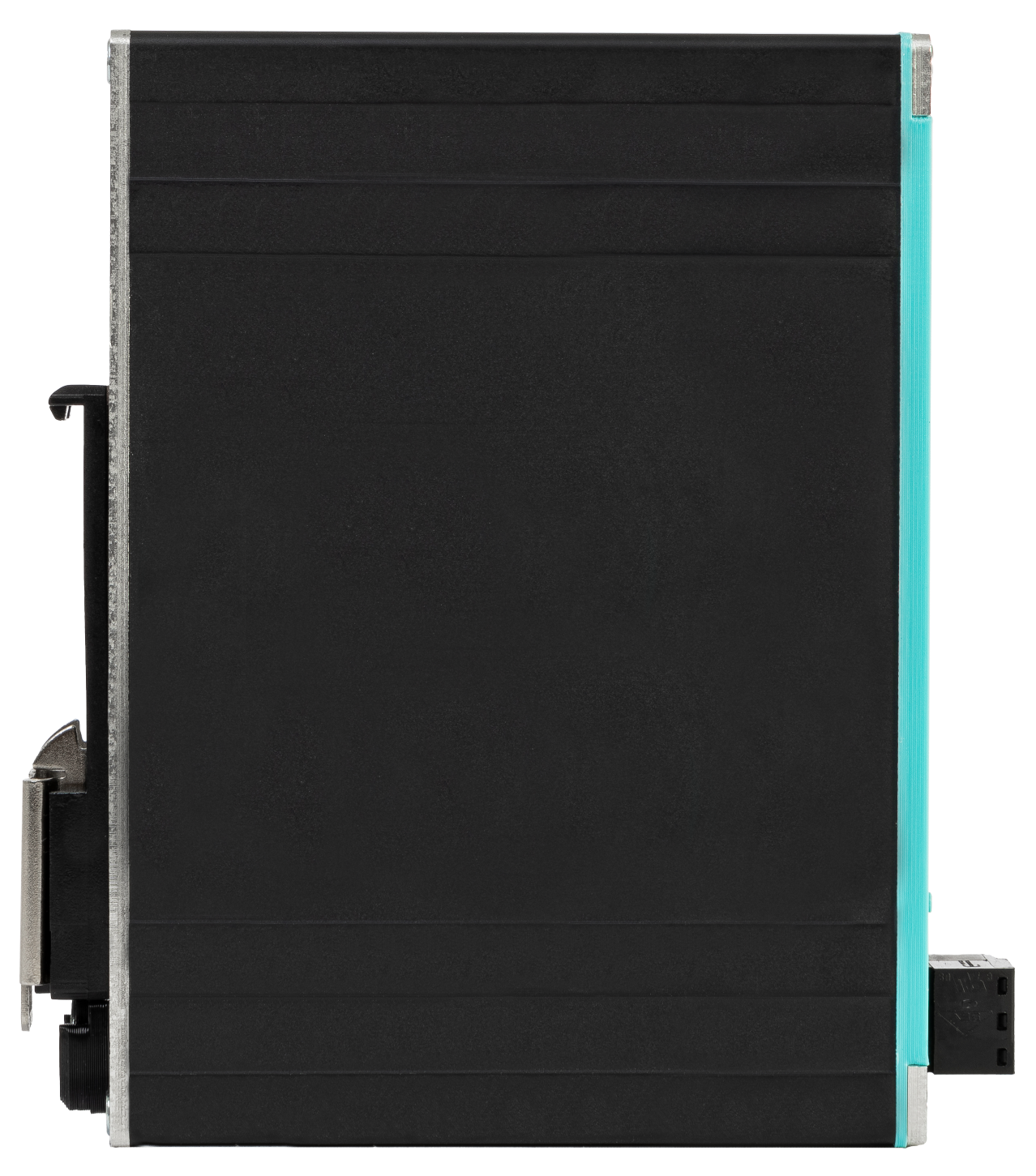

- Slim design for DIN-rail
FLEXtra SLIM PROFINET-Switch, managed 5x RJ45
General information
- Order number700-852-5PS01
- Article nameFLEXtra SLIM PROFINET Switch, managed, 5-port, 100 Mbit
- Scope of deliveryPROFINET Switch 5-port with power supply plug
- Dimensions (DxWxH)80 x 25 x 109 mm
- WeightApprox. 200 g
PROFINET interface
- Number5
- ProtocolPROFINET IO Device as defined in IEC 61158-6-10
- Transmission ratemax. 100 Mbps
- ConnectionRJ45 socket
- FeaturesMedia Redundancy Protocol (MRP-Client), VLAN, RSTP
- automatic addressing / topology detection (LLDP, DCP),
- PROFINET Conformance class B (in preparation)
Status indication
- Functional status4 LEDs
- Ethernet status10 LEDs
Power supply
- Voltage supply24 V DC (18...30 V DC)
- Current drawMax. 140 mA with 24 V DC
- Power dissipationMax. 3,3 W
Ambient conditions
- Ambient temperature-40 °C ... +75°C
- Transport and storage temperature-40 °C … +85 °C
- Relative air humidity95 % r H without condensation
- Protection ratingIP20
- ApprovalsCE, PROFINET Conformance Class B (in preparation)
FLEXtra SLIM PROFINET-Switch, managed 5x RJ45
| Name | Version | Size | |
| FLEXtra SLIM PROFINET-Switch, Quickstart Guide | 2 | 856 KB | Download |
| FLEXtra SLIM PROFINET-Switch, manual | 3 | 2,8 MB | Download |
| Name | Version | Size | |
| EU Declaration of conformity | 11-2025 | Download |
| Name | Version | Size | |
| GSDML-files | 7-2026 | 8 KB | Download |
| Name | Version | Size | |
| IPSet | 1.04.016 | 23 MB | Download |
| IPSet, OpenSource license terms | Download |
| Name | Version | Size | |
| Advantages of a PROFINET-Switch | 4 | 2 MB | Download |
| PROFINET FAQ | 2 | 190 KB | Download |
| Automation and the IT world in a single device | 10-2023 | Download |
| Name | Version | Size | |
| Innovatively networking automation – PROFINET and Ethernet-Switches | 3-2026 | 2 MB | Download |
