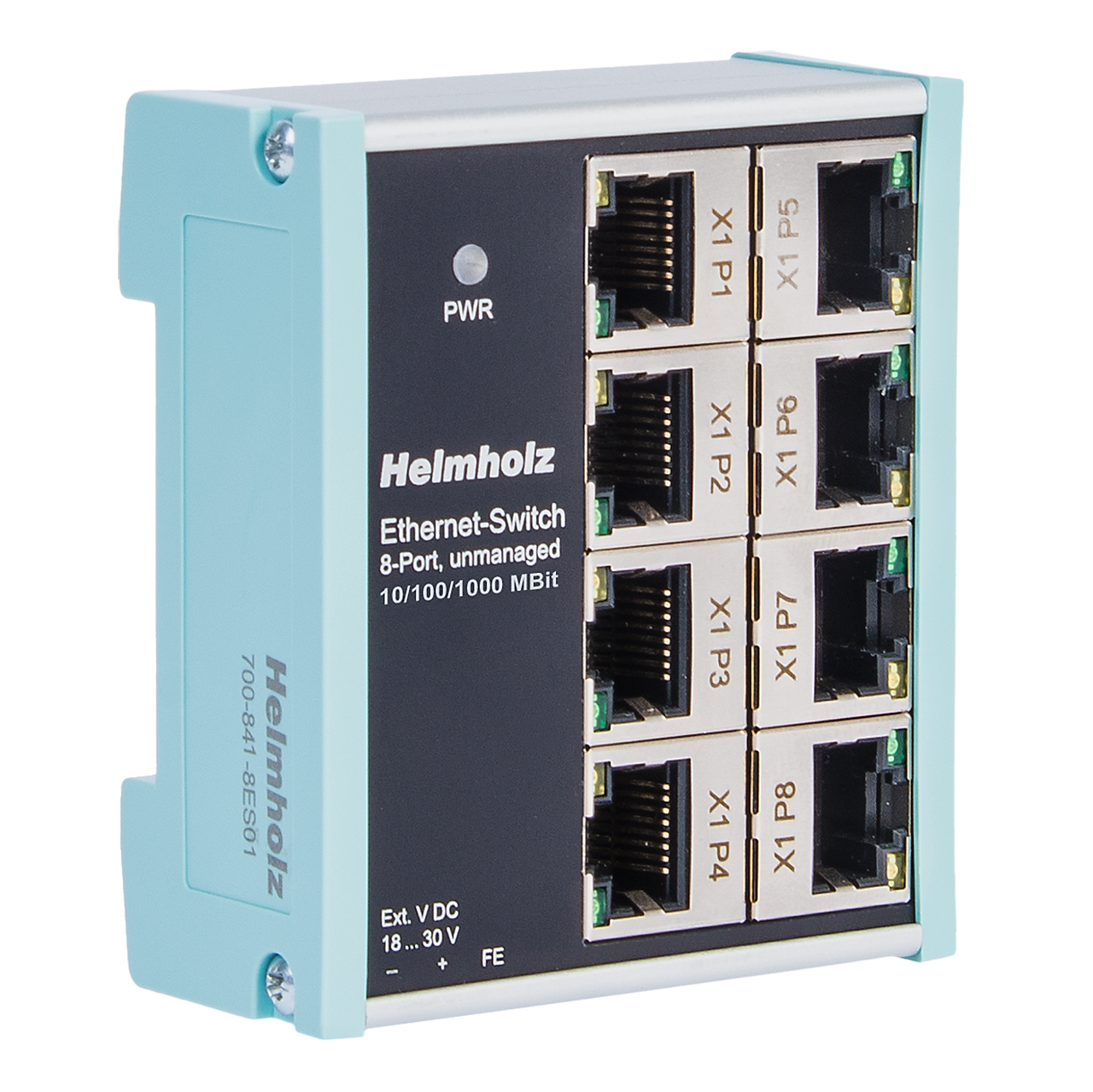

FLEXtra FLAT Ethernet-Switch, unmanaged 8x RJ45 1 Gbit
With its very compact design the unmanaged Ethernet-Switch can be used for a wide range of industrial applications and convinces with its light but robust design.
€287.42
FLEXtra FLAT Ethernet-Switch, unmanaged 8x RJ45 1 Gbit
The new Helmholz unmanaged Ethernet switches for up to 1000 Mbit (Gigabit) can be used for a variety of industrial applications because of their very compact design. The lightweight and tough industrial design is suitable for mounting on a DIN rail and can be easily integrated into your network. Once plugged in, it's ready for use thanks to the simple Plug & Play solution. The tool-free push-in connection for the power supply supports you.
The unmanaged Ethernet switch is suitable for PROFINET networks. The LLPD (neighborhood detection) and PTCP (time synchronization) functions are handled correctly with the switch in accordance with the PROFINET standard. The unmanaged Ethernet switch thus corresponds to PROFINET Conformance Class A.
With this variant of the unmanaged Ethernet-Switch, you can connect up to 8 Ethernet participants with up to 1000 Mbps. A mixed operation with devices that support only 10 or 100 Mbit is possible without configuration effort. If you would like to connect more participants, we recommend our 16-port unmanaged Ethernet Switch.
- Store-and-Forward architecture
- 10BASE-T/100BASE-TX/1000BASE-T
- Full-/Half-Duplex
- Auto negotiation
- Auto MDI/MDI-X (IEEE 802.3u Auto crossover support)
- QoS-Priority-Queues: 8
- LLDP & PTCP Delay-Traffic blocking (for PROFINET networks)
- PROFINET Conformance Class A
- 16K MAC address lookup table
- 256 Kbyte memory for frame buffering
- 51.2 Gbps high-performance memory bandwidth
- support Jumbo frame sizes up to 10KByte
FLEXtra FLAT Ethernet-Switch, unmanaged 8x RJ45 1 Gbit
General information
- Order number700-841-8ES01
- Article nameFLEXtra FLAT Ethernet-Switch, unmanaged, 8-port, 1 Gbit
- Scope of deliveryEthernet 8-port switch with power supply plug, short manual
- Dimensions (DxWxH)32.5 x 64 x 80.5 mm
- WeightApprox. 150g
LAN interface
- Number8
- ConnectionRJ45
- Transmission rate10/100/1000 Mbps
- Type10Base-T/100Base-TX/1000Base-T
- Full/Half-Duplex
- Auto negotiation
- Auto MDI/MDI-X
- PROFINET Conformance Class A
Status Indicator
- Power display1 LED
- Ethernet status16 LEDs
Power supply
- Voltage supply24 V DC (18...30 V DC)
- Current drawmax. 150 mA at 24 V DC
- Power dissipation3,6W
Ambient conditions
- Ambient temperature-25 °C … +75 °C
- Transport and storage temperature-40 °C … +85 °C
- Relative air humidity95 % r H without condensation
- Pollution degree2
- Mounting positionas desired
- ApprovalsCE, UL
UL
- ULUL 61010-1/ UL 61010-2-201
- Pollution degree2
- Voltage supplyDC 24 V (18 ... 30 VDC, SELV and limited energy circuit)
- AltitudeUp to 2000 m
- Temperature cable rating87 °C
FLEXtra FLAT Ethernet-Switch, unmanaged 8x RJ45 1 Gbit
| Name | Version | Größe | |
| Manual 700-841-8ES01 | V5 | 159 KB | Download |
| Name | Version | ||
| EU Declaration of conformity 700-840-xxxxx | 11-2021 | Download | |
| PROFINET Conformance Class A manufacturer declaration | 5-2023 | Download | |
| EU Declaration of conformity 700-841-8ES01 | 1-2023 | Download | |
| EU Declaration of conformity 700-841-16S01 | 2-2025 | Download |
| Name | Version | Größe | |
| FLEXtra FLAT unmanaged Switch STEP-Files | 6-2024 | 4,1 MB | Download |
| EPLAN Data Portal, Helmholz product macros | Download |
| Name | Version | Size | |
| Innovatively networking automation – PROFINET and Ethernet-Switches | 3-2026 | 2 MB | Download |
