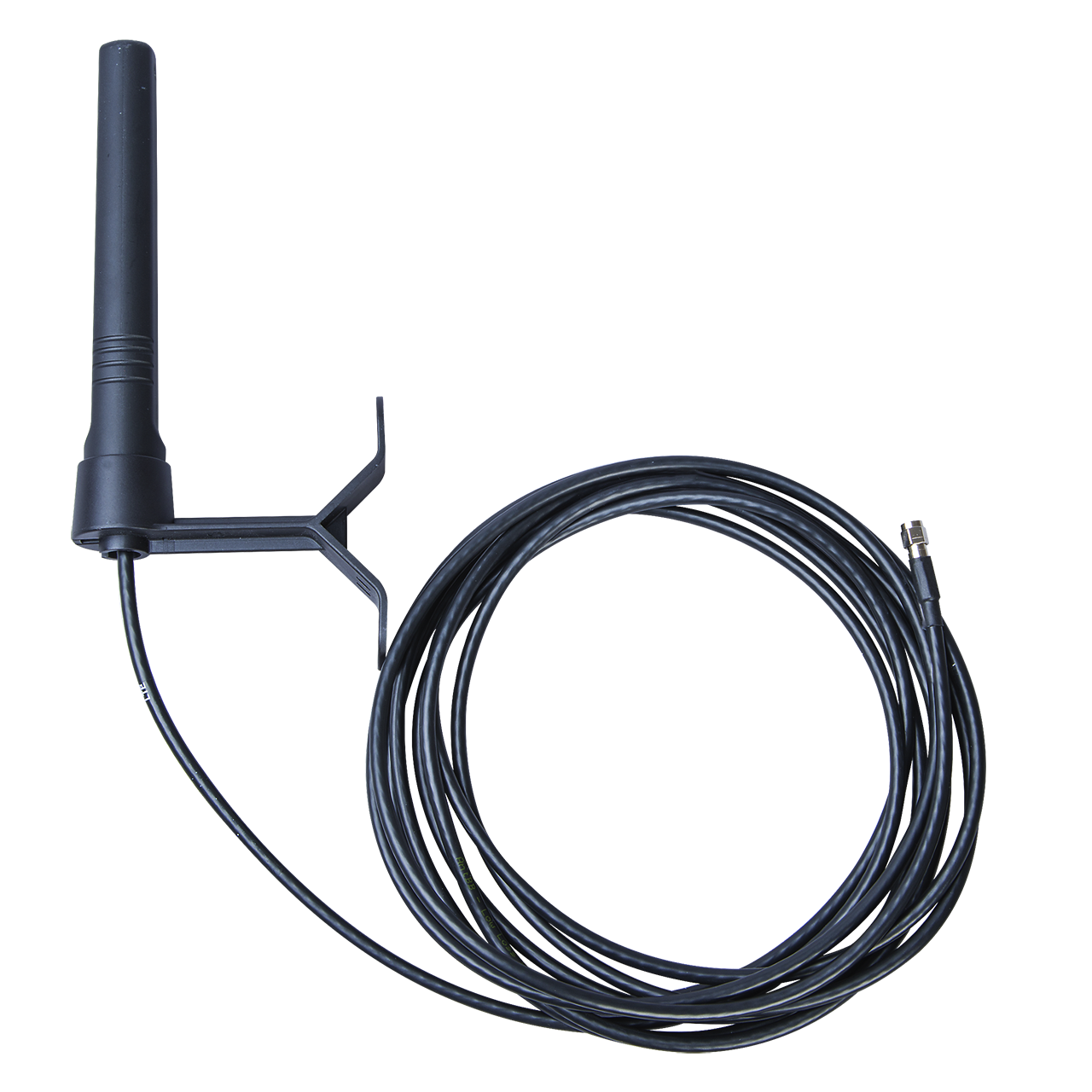

Cellular Antennas Stationary Quadband, 2dBi
REX industrial routers with an integrated cellular modem require an LTE antenna.
For radio reception, a suitable antenna must be screwed to at least the SMA socket of the router "MAIN" (ANT 2).
€80.00
Cellular Antennas Stationary Quadband, 2dBi
Antenna for Wall-mounting. In order to improve the 4G data throughput, a second antenna terminal is available on the REX 100 LTE router with the SMA socket "Rx" (ANT1). If you would only like to install one antenna, we recommend the MiMo wall antenna, as it already contains two antennas in one housing.
Our technical sales is happy to answer any questions you may have regarding the various antennas.
- Gain 2 dBi
- 5 m cable length
- SMA male connector
- Indoor and outdoor
Cellular Antennas Stationary Quadband, 2dBi
General information
- Order number700-751-ANT31
- Article nameStationary quadband antenna, 2 dBi, 5 m cable, SMA male connector
- Scope of deliveryStationary quadband antenna, incl. cable
- Radio networksLTE 800 | GSM 900 | GSM 1800, UMTS | LTE 2600
- Frequency range790–862 MHz | 890–960 MHz | 1710–2170 MHz | 2400–2485 MHz | 2500–2690 MHz
- Polarizationvertical
- Gain≈ 2 dBi
- VSWR≤ 1,9 : 1
- Return loss> 10 dB
- Impedance50 Ω
- UV Resistanceexists (housing flares are possible)
- Cable length5.0 m, low loss
- Connector typeSMA (m)
- Antenna35 mm
- Height185 mm
Cellular Antennas Stationary Quadband, 2dBi
| Name | Version | Size |
| Stationary quadband antenna, 2 dBi, 5 m cable, SMA male connector, Data Sheet | 1 | 253 KB |
