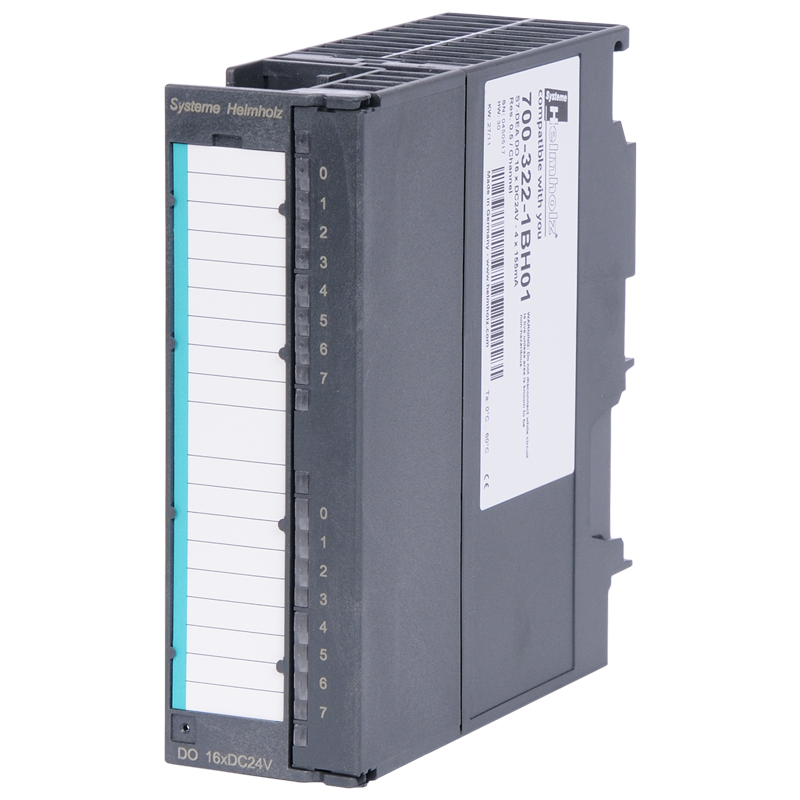

Output module digital for 300 16x 0,5A
Digital output modules for the 300 series
€236.62
Product number:
700-322-1BH01
Output module digital for 300 16x 0,5A
The module has 16 outputs.
- 16 Outputs 24V DC
Output module digital for 300 16x 0,5A
General information
- Order number700-322-1BH01
- Article nameDEA 300, DC 24 V, 0.5 A, 16 outputs
- Scope of deliveryDEA 300, DC 24 V, 0.5 A, 16 outputs
- Dimensions (DxWxH)116 x 40 x 125 mm
- WeightApprox. 220g
- Number of outputs16
- Power dissipation (nominal operation)typ. 5 W
- Front connectors20-pin
Electrical isolation
- from the backplane busYes (optocoupler)
- in groups to8
Supply voltage UP, US
- Rated value24 V DC
- Ripple USSmax. 3.6 V
- Permissible range (with ripple)+20 … +30 V
- Voltage for t < 10 msmax. 50 V
- Rated value0.5 A
- Short-circuit protectionElectronic
- Inductive cutoff voltage limit-48 V
Cable length
- Unshieldedmax. 600 m
- Shieldedmax. 1000 m
Current draw
- Internal (backplane bus)Max. 100 m
- External (from +24 V/L+)typ. 120 mA
Ambient conditions
- Ambient temperature0 °C … +60 °C
- Transport and storage temperature-25 °C … +75 °C
- Pullution degree2
- Protection ratingIP20
- ApprovalsCE
Output module digital for 300 16x 0,5A
| Name | Version | Size |
| DEA 300, Manual | 12 | 8 MB |
| Name | Version | Size |
| S7 Components from Helmholz - The clever alternative | 11-2025 | 1700 KB |
