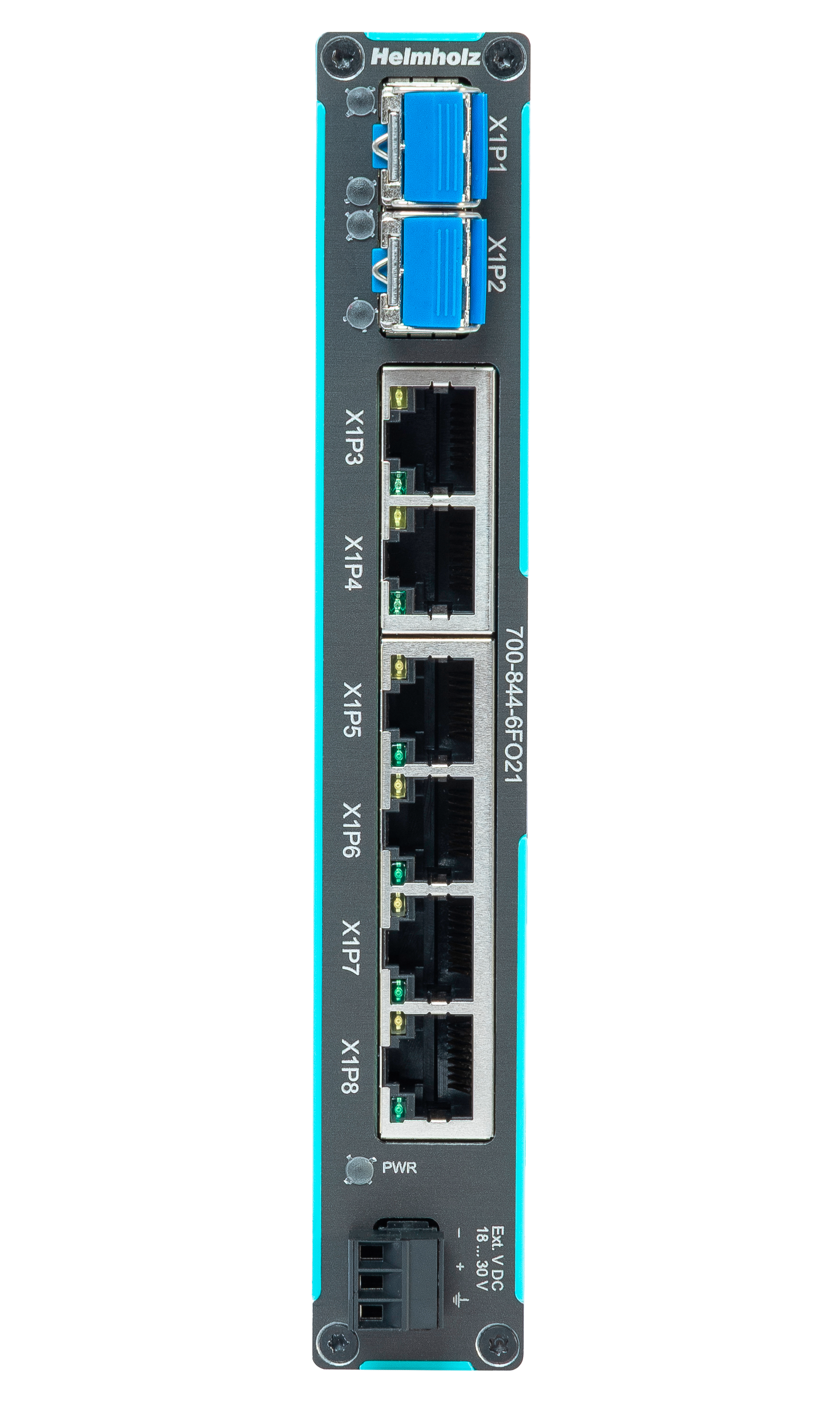

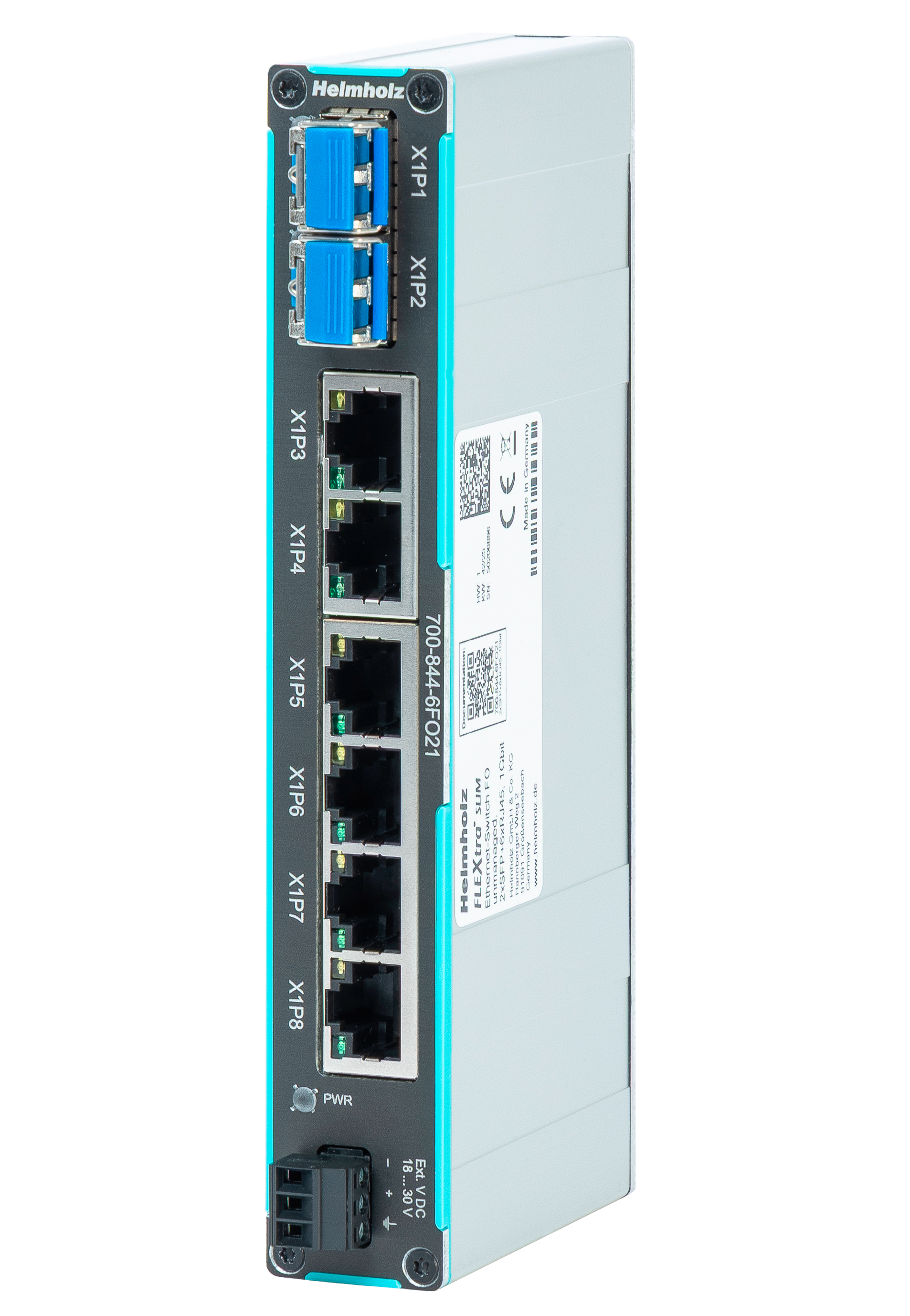

FLEXtra SLIM Ethernet-Switch, unmanaged 6x RJ45, 2x SFP 1 Gbit
The unmanaged Ethernet switch impresses with its lightweight yet robust design. Thanks to its ultra-compact and space-saving design, it is also suitable for control cabinets with limited space, such as those found on extensive conveyor belt systems in the field.
€320.00
FLEXtra SLIM Ethernet-Switch, unmanaged 6x RJ45, 2x SFP 1 Gbit
The FLEXtra SLIM Switch is suitable for mounting on a top-hat rail and can be easily integrated into your network. Once plugged in, it is immediately ready for operation thanks to its simple plug & play installation. No configuration is necessary.
In addition to 6 RJ45 ports for up to 1 Gbit, there are also 2 SFP ports for fibre optic connections with up to 1 GBit.
The Ethernet switch is suitable for PROFINET networks. The LLPD (neighbourhood detection) and PTCP (time synchronisation) functions are handled correctly by the switch in accordance with the PROFINET standard. The unmanaged Ethernet switch therefore complies with PROFINET Conformance Class A.
SFP modules are not included in the scope of delivery!
- Store-and-Forward architecture
- RJ45: 10Base-T/100Base-TX/1000Base-T
- SFP/SFP+: 100Base-FX/1000Base-X
- Full-/Half-Duplex
- Autonegotiation
- Auto MDI/MDI-X (IEEE 802.3u Auto crossover support)
- LLDP & PTCP Delay-Traffic blocking (for PROFINET networks)
- PROFINET Conformance Class A
- Qos-Priority Queues: 8
- 4k MAC addres lokup table
- Maximum Frame Size: 9216 bytes
FLEXtra SLIM Ethernet-Switch, unmanaged 6x RJ45, 2x SFP 1 Gbit
General information
- Order number700-844-6FO21
- Article nameFLEXtra SLIM Ethernet-Switch FO, unmanged, 2xSFP + 6xRJ45, 1Gbit
- Scope of deliverythFLEXtra SLIM Ethernet-Switch FO with power supply plug
- Dimensions (DxWxH)65 x 25 x 157 mm
- WeightApprox. 270g
LAN interface
- Connetion6x RJ45
- 2 x Fiber Optic (FO) for SFP Transceiver modules, Singlemode or Multimode
- Transmission rateRJ45:10/100/1000 Mbit/s
- SFP/SFP+: 1000 Mbit/s
- TypeRJ45: 10Base-T/100Base-TX/1000Base-T
- SFP: 100Base-FX/1000Base-X
- Full-/Half-Duplex (Autonegotiation)
- Auto MDI/MDI-X
- IEEE Autocrossover
- PROFINET Conformance Class A
Status indicator
- Power display1 LED
- Ethernet-Status16 LEDs
Power supply
- Voltage supply24 V DC (18...30 V DC)
- Current drawmax. 250 mA at 24 V DC
- Power dissipation6,0 W
Ambient conditions
- Ambient temperature-25 °C … +60 °C
- Transport and storage temperature-40 °C … +85 °C
- Relative air humidity95 % r H without condensation
- Pollution degree2
- Protection ratingIP20
- Mounting positionas desired
- AppovalsCE
FLEXtra SLIM Ethernet-Switch, unmanaged 6x RJ45, 2x SFP 1 Gbit
| Name | Version | Size | |
| FLEXtra SLIM Ethernet-Switch FO, 1GBit, Brief instruction | V1 | 178 KB | Download |
| Name | Version | ||
| EU Declaration of conformity 700-842-5ES01 | 3-2024 | Download | |
| EU Declaration of conformity 700-842-8ES01 | 3-2024 | Download | |
| EU Declaration of conformity 700-842-16S01 | |||
| EU Declaration of conformity 700-843-5ES01 | 1-2026 | Download | |
| EU Declaration of conformity 700-843-8ES01 | 1-2026 | Download | |
| EU Declaration of conformity 700-844-6FO21 | 11-2025 | Download | |
| PROFINET Conformance Class A manufacturer declaration | 7-2026 | Download |
| Name | Version | Size | |
| FLEXtra SLIM unmanaged Switch STEP-files | 2-2025 | 3,1 MB | Download |
| EPLAN Data Portal, Helmholz product macros | Download |
| Name | Version | Size | |
| Innovatively networking automation – PROFINET and Ethernet-Switches | 3-2026 | 2 MB | Download |
